Lillevilla Sauna Kallavesi – 6,6m² / 44mm

Compact Sauna Lillevilla Kallavesi

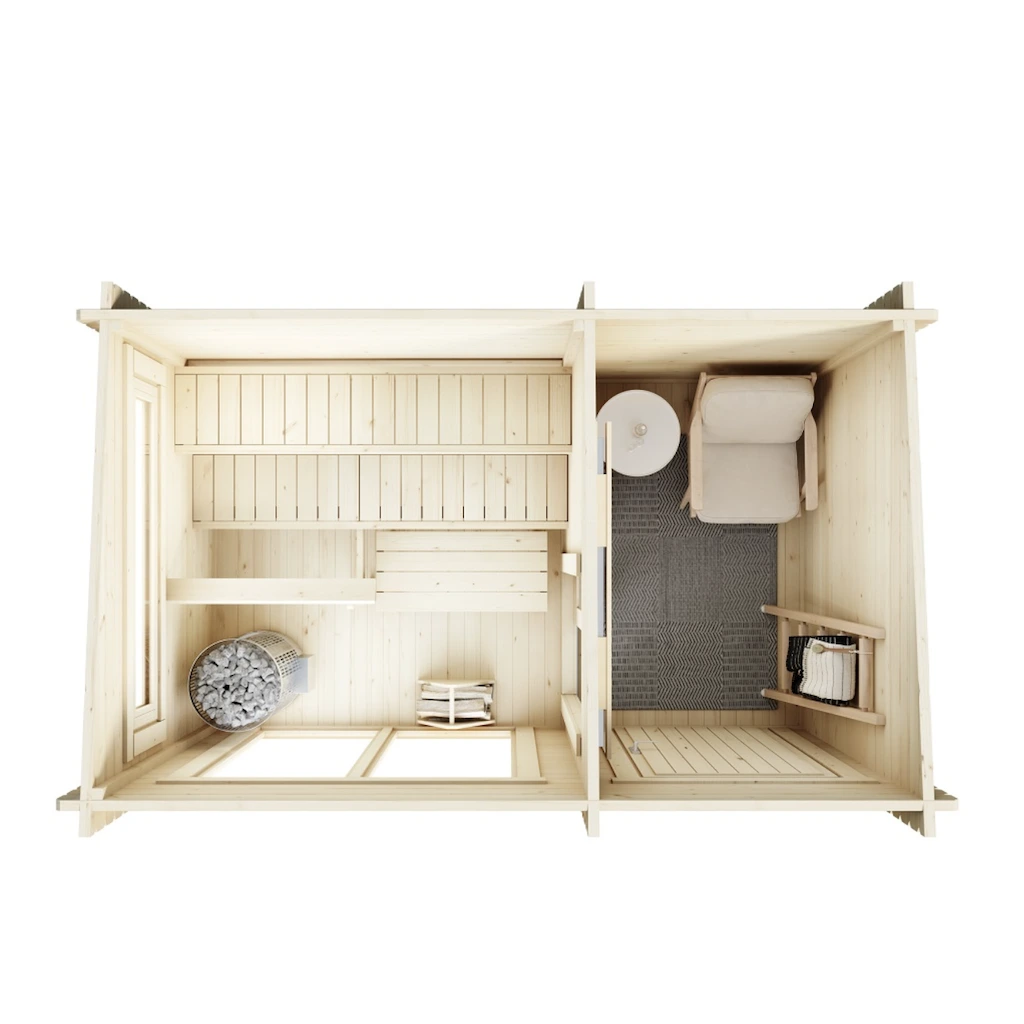

The Lillevilla Kallavesi compact sauna offers relaxing sauna moments. The large windows in the sauna room allow you to admire the scenery while enjoying your sauna session. The Lillevilla Kallavesi model features a separate changing room and sauna room. The floor area of this model is 6.6 square meters. The sauna is 3.3 meters wide and 2 meters deep. The ridge height of this model is 2.65 meters, and the wall thickness is 44 mm.

Delivery Contents

The product package includes logs, doors, windows, as well as floor and roof boards, along with fittings, nails, and screws. The sauna room door is a convenient space-saving sliding door. The floorboards are 21 mm thick, and the roof boards are 19 mm. The package also includes 16 mm interior ceiling panels for the sauna room.

Roofing material is not included in the delivery. You can order Katepal TopTite 3 roll roofing (sealed roofing) from us via this page. We do not recommend tile or shingle roofing. The roofing material must be installed immediately after the structure is erected.

The sauna benches are not included in the delivery, but you can also order a bench package for the sauna from this page.

Note: The heater and chimney are not included in the delivery.

The components of the sauna are machine-prepared at the factory. However, since this is a construction project, ensure you have common tools on hand, such as a measuring tape, level, hammer, saw, screwdriver, and drill. Check the builder’s inspection list for additional materials to procure and other considerations via this link. Assembly tips are also compiled here.

Surface Treatment

The building’s surface treatment must be carried out promptly after erection, provided weather conditions allow. Use breathable surface treatment products designed for log surfaces. Paint that forms an impermeable plastic film must not be used. Tips for surface treatment can be found via the link on this page.

Building Permit

Check the need for a building permit in advance with the building permit authority of your municipality. You can download the required drawings for the permit application from this page or request them from our customer service.

Technical specifications:

Base area (m²): 6.6
Base dimensions (mm x mm): 3300 x 2000
Wall thickness (mm): 44
Ridge height (mm): 2650
Roof area (m²): 10
Roof dimensions (mm x mm): 3800 x 2625
Ridge length (mm): 3800
Roof slope length (mm): 2660
Roof pitch (degrees): 8.00
Floorboard thickness (mm): 21
Roof board thickness (mm): 19 (interior ceiling panel 16 mm)
Windows:
Insulated safety glass CE 4/6/4mm: Type B6 (1563×496)
Insulated safety glass CE 4/9/4mm: Type R9 (717×1816) x2
Window opening direction:
Type B6 – Opens upwards and outwards
Type R9 – Fixed
Doors:
Safety glass CE 4mm: Type O6 (694×1714)
Safety glass CE 4mm: Type C5 (897×1820)
Roofing material: Not included
Package dimensions (mm) and weight:
Dimensions: 3850 x 830 x 1150
Weight: 980 kg
EAN: 6418635049679
Product code (SKU): 0144 33 20 10

Additionally available:

Roofing Material:

30126 Sealed seam roofing package (+ 234,00 €)

Eaves Flashing Package:

30135 Eaves Flashing Package (+ 108,00 €)

Insulation Packages:

9272 Roof Insulation Package (+ 328,50 €)
9274 Floor Insulation Package (+198,00 €)

Bench Package:

9869 Bench Package – 1900mm (+ 364,50 €)

Sauna Floor Drain:

9878 Floor Drain (+99,00 €)

Assembly instructions

Drawings for permit application

Surface treatment instructions
