Arpanel – MW Wall panels

0.0

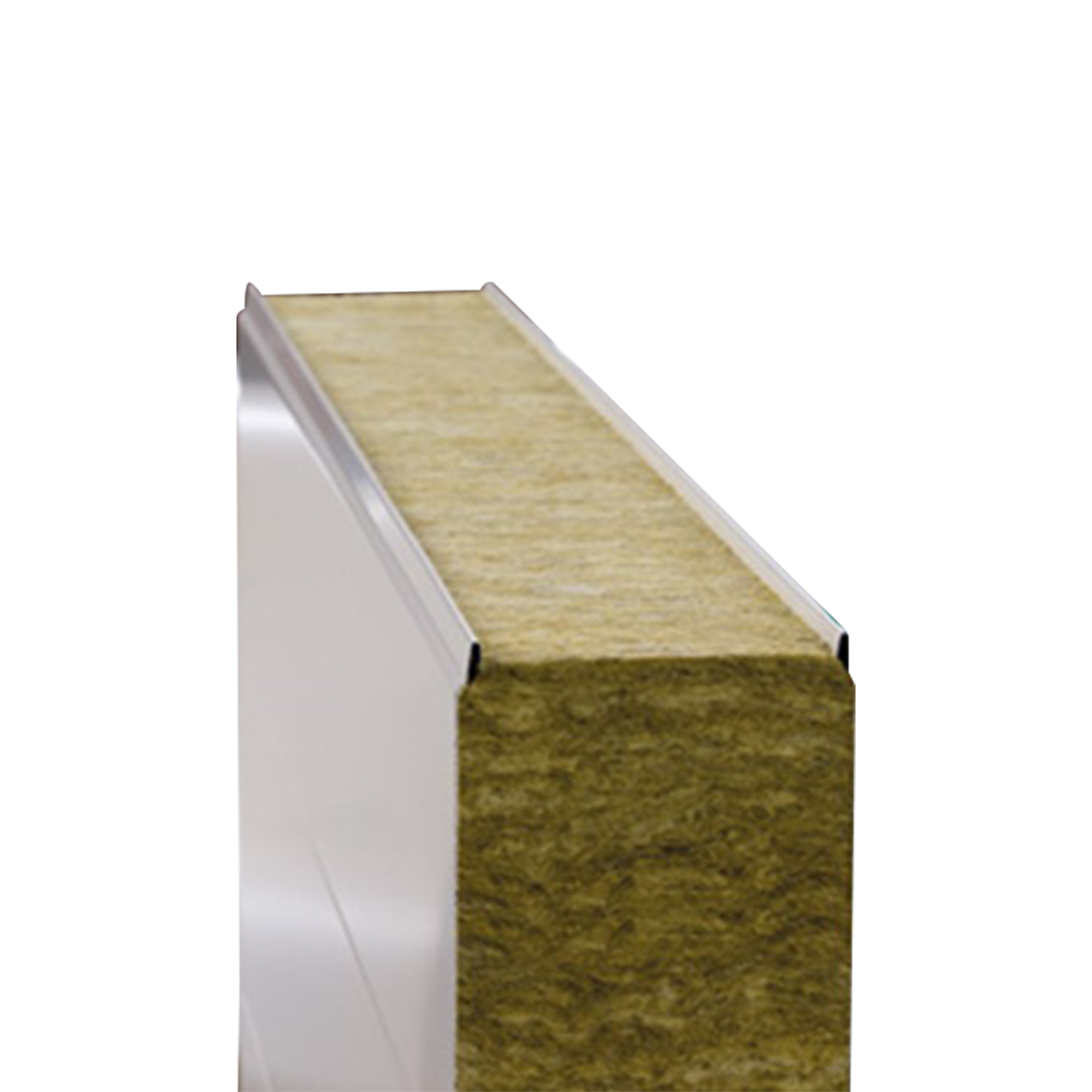

Arpanel has a wide range of Sandwich panels with Mineral wool (MW), Polyurethane (PIR/PUR), and polystyrene (EPS). The panel system is primarily for external use of wall and roofing constructions but can also be used as an interior material. The wide range of different profiles and colors increases the variation possibilities for a very differentiated appearance. Minimum order 150 m2. This is the sample price for a 100mm panel. Please send your inquiry: order@factory.sale

Tnot inc. VAT.

27,90 €34,70 €

Amount

Arpanel has a wide range of Sandwich panels with Mineral wool (MW), Polyurethane (PIR/PUR), and polystyrene (EPS). The panel system is primarily for external use of wall and roofing constructions but can also be used as an interior material. The wide range of different profiles and colors increases the various possibilities for a very differentiated appearance.

• Mineral wool core, A2-s1, d0

• High fire resistance EI240

• Excellent thermal and sound insulation

• Lengths: 910 – 12,000 mm

• Covering width: 1150, 1100, 1000 mm

• Thicknesses: 100 – 300 mm

• Intrusion protection according to protection class 2

• Quick deliveries

• Technical support during the entire construction period

Surface material	Steel S280–S320
Insulation material:	Mineral Wool (MW)
Surface coating:	PE and PVDF as standard. Karat and other special coatings available as custom orders.
Colour:	RAL-colours (see product brochure)
Pattern:	Smooth surface Shadow groove 150, 200, 600 Profiling S50 Microprofiling M10, M15 Perforated interior/exterior
Covering width:	1150, 1100, 1000 mm

Thickness (mm)	U_c value (W/m²K)	Weight (kg/m²)	Fire Resistance
100	0,38	~20	EI120
120	0,31	~22	EI120
150	0,26	~25	EI120
175	0,22	~28	EI120
200	0,20	~31	EI120
240	0,16	~35	EI240
300	0,13	~41	EI240
