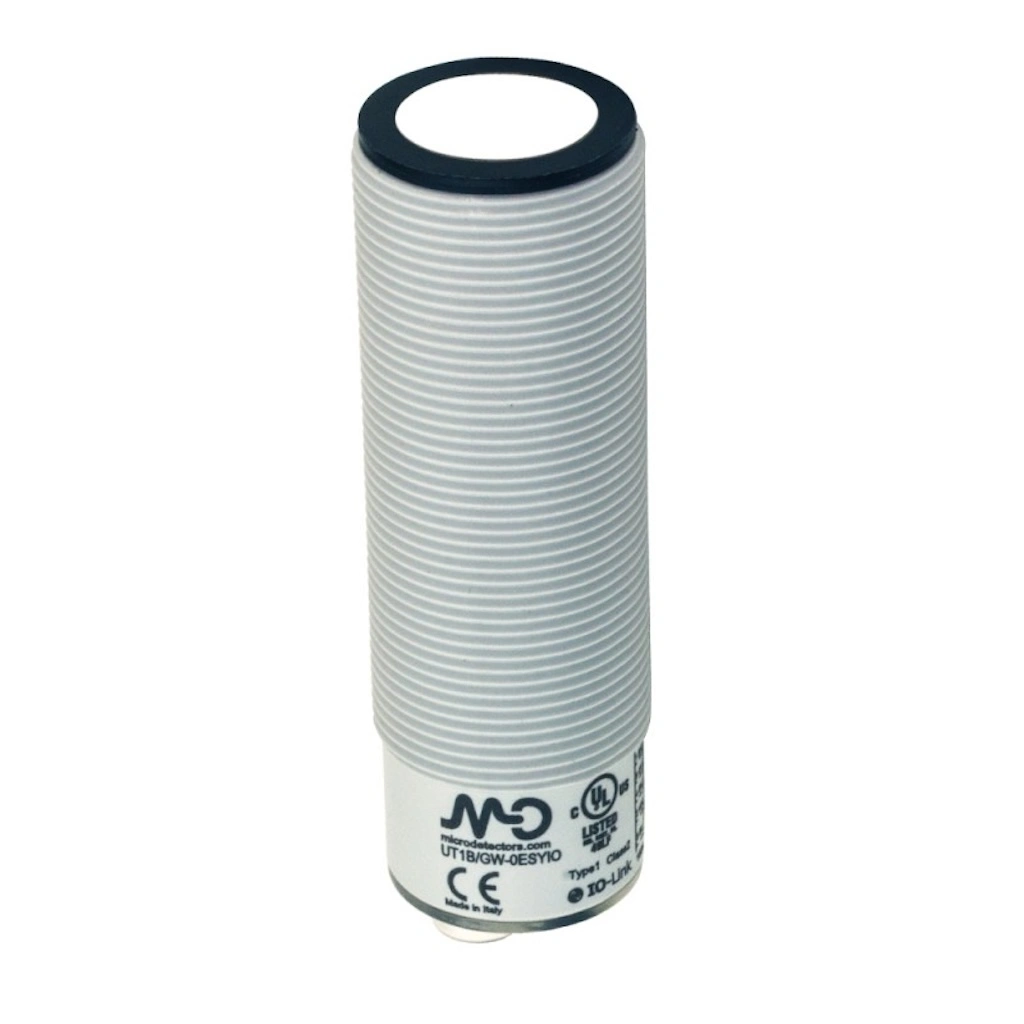

UT1B/G2-0ESY ultrasonic sensor, 10-30DC, M30, 250-3500MM, 4-20MA, M12, IP67

0.0

M30 ultrasonic sensor with standard housing and with large front with high performances and high sensing distances Models with both analog and digital output to streamline the codes. Adjustable hysteresis function: models with double digital programmable output specific for level detection. Models with voltage or current output: programmable slope to optimize resolution. Adjustable working area (window mode or object mode) by Teach-in button on all models for a quick and easy installation. Two multifunction LED indicators: orange LED for adjustment procedure and output state and green LED for target alignment. Temperature compensation on all working range.

Tnot inc. VAT.

389,40 €423,00 €

Amount

M30 ultrasonic sensor with standard housing and with large front with high performances and high sensing distances
Models with both analog and digital output to streamline the codes.
Adjustable hysteresis function: models with double digital programmable output specific for level detection.
Models with voltage or current output: programmable slope to optimize resolution.
Adjustable working area (window mode or object mode) by Teach-in button on all models for a quick and easy installation.
Two multifunction LED indicators: orange LED for adjustment procedure and output state and green LED for target alignment.
Temperature compensation on all working range.

Technical information:

Model: UT1B/G2-0ESY
Supplier: Datasensing
Power supply: 10-30V DC
Series: UT1/UT2
Measurement range: 250-3500 mm
Working temperature: -20˚…+70˚C
Protection class: IP67
Housing: Plastic
Connection type: M12 plug
Output: 4-20mA
Shape: Cylinder
Diameter: 30 mm

PDF
