Sale -22%

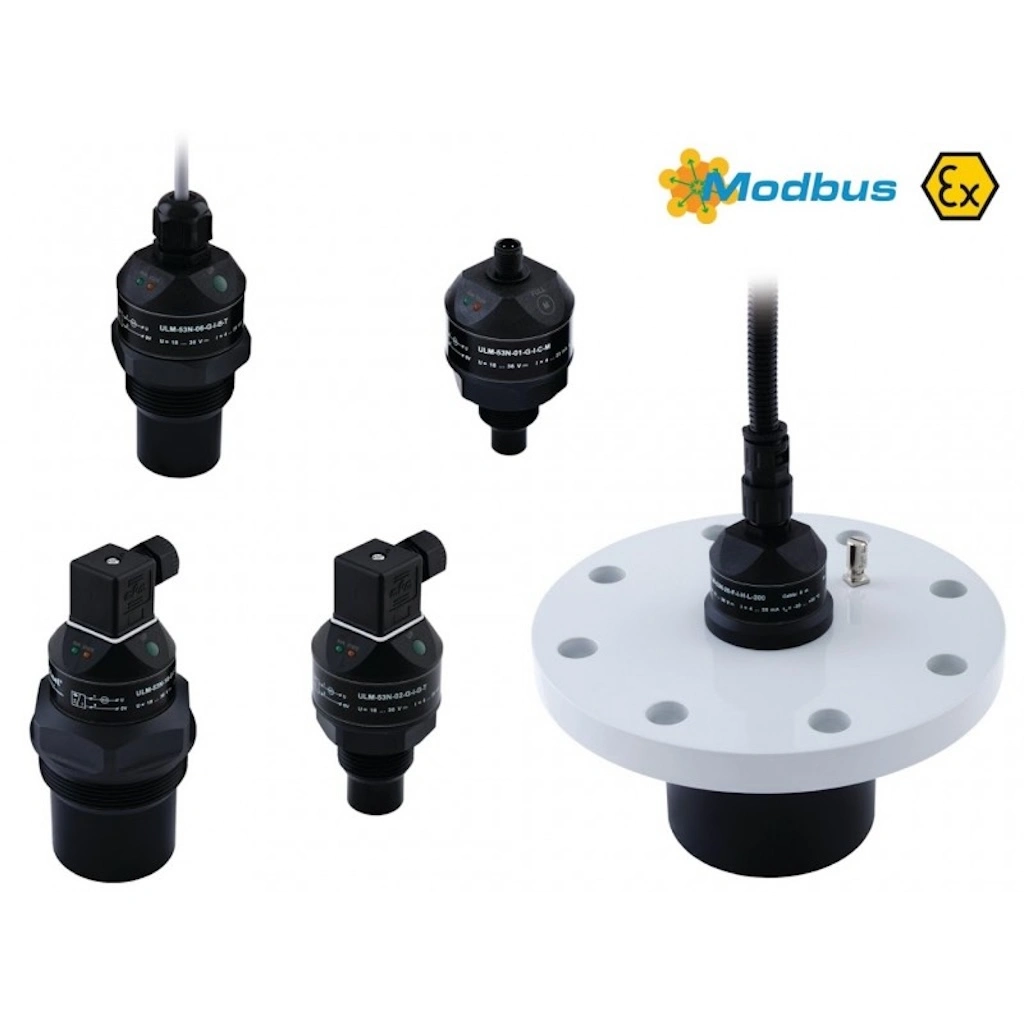

ULM-53-02-G-I-C-M ultrasonic sensor, 18-36DC, 0,2-2M, plastic, G1“, 4-20MA, M12, IP67

0.0

For continuous level measurement of liquids (even if polluted), mash and paste materials in open or closed vessels, sumps, open channels, drains, etc.
Variants of level meter with adjustment by two buttons, or by magnetic pen
Xi version for usage in explosive areas
State indication by two LEDs
Current output (4 ... 20 mA), voltage output (0 ... 10 V) or RS-485 Modbus output
Wide choice of electric connection via connectors, cable glands or protective conductor
Reception of reflected ultrasonic signal

311,00 €398,00 €

not inc. VAT.

Amount

Add to quote

Warning: foreach() argument must be of type array|object, null given in /www/apache/domains/www.voolar.agency/htdocs/fs/wp-content/themes/factory-sale/woocommerce/single-product.php on line 516

For continuous level measurement of liquids (even if polluted), mash and paste materials in open or closed vessels, sumps, open channels, drains, etc.
Variants of level meter with adjustment by two buttons, or by magnetic pen
Xi version for usage in explosive areas
State indication by two LEDs
Current output (4 … 20 mA), voltage output (0 … 10 V) or RS-485 Modbus output
Wide choice of electric connection via connectors, cable glands or protective conductor
Reception of reflected ultrasonic signal

Technical information:

Model: ULM02
Supplier: Dinel
Power supply: 18-36V DC
Series: ULM
Measurement range: 0,2-2 m
Working temperature: -30˚…+70˚C
Protection class: IP67
Housing: Plastic
Connection type: M12 plug
Output: 4-20mA
Thread/conduit entry: G1″
Shape: Cylinder
