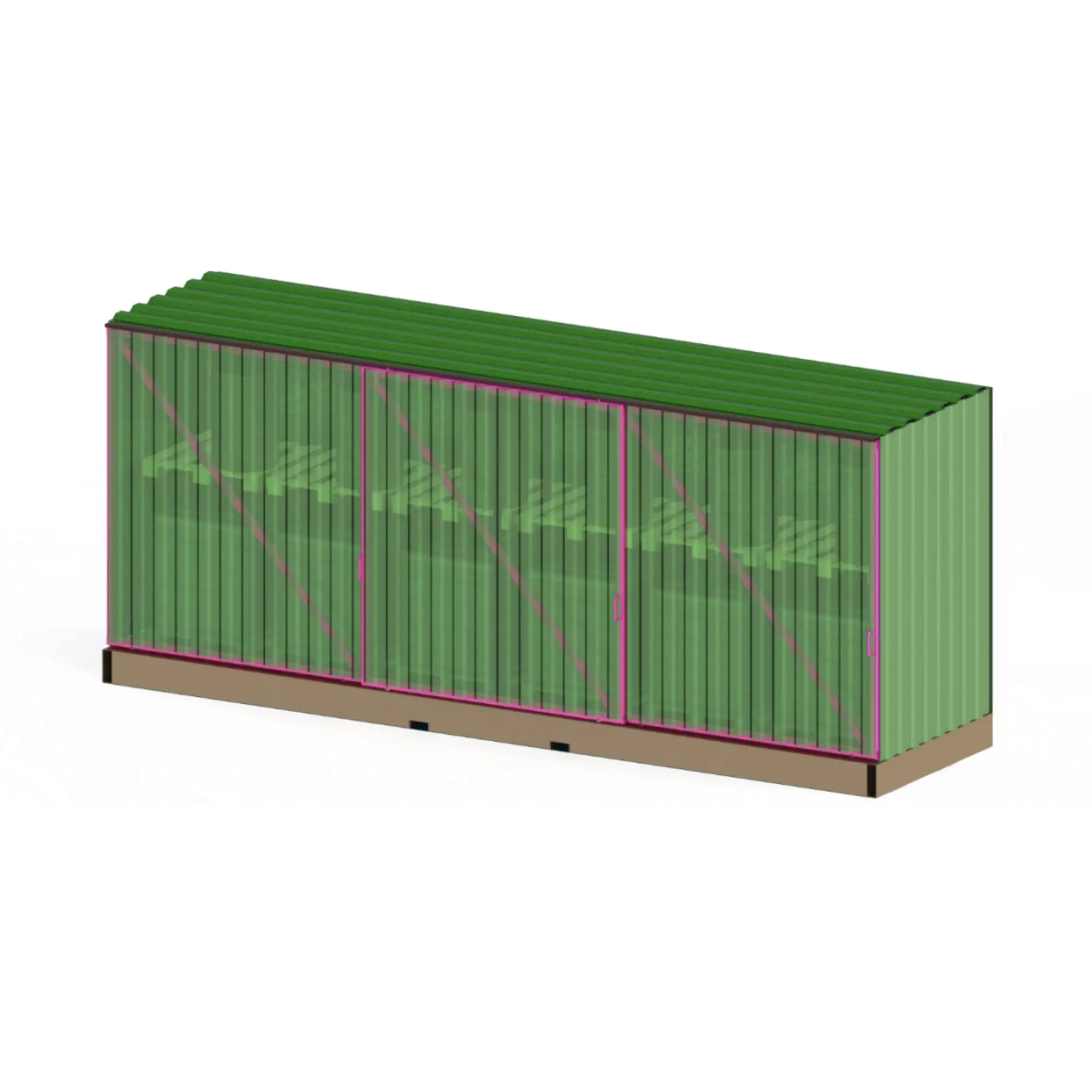

Storage container Unipal48 for 12 IBC

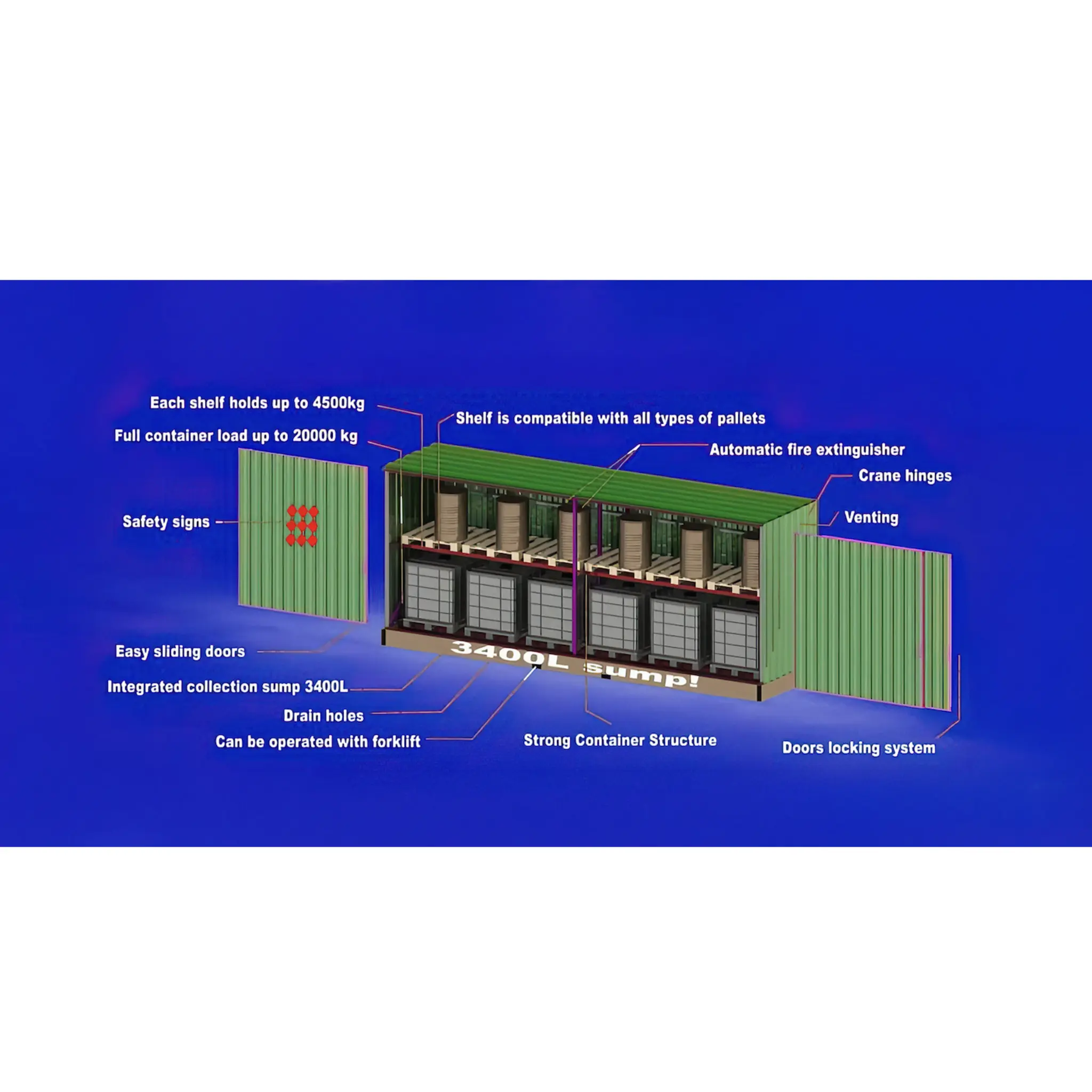

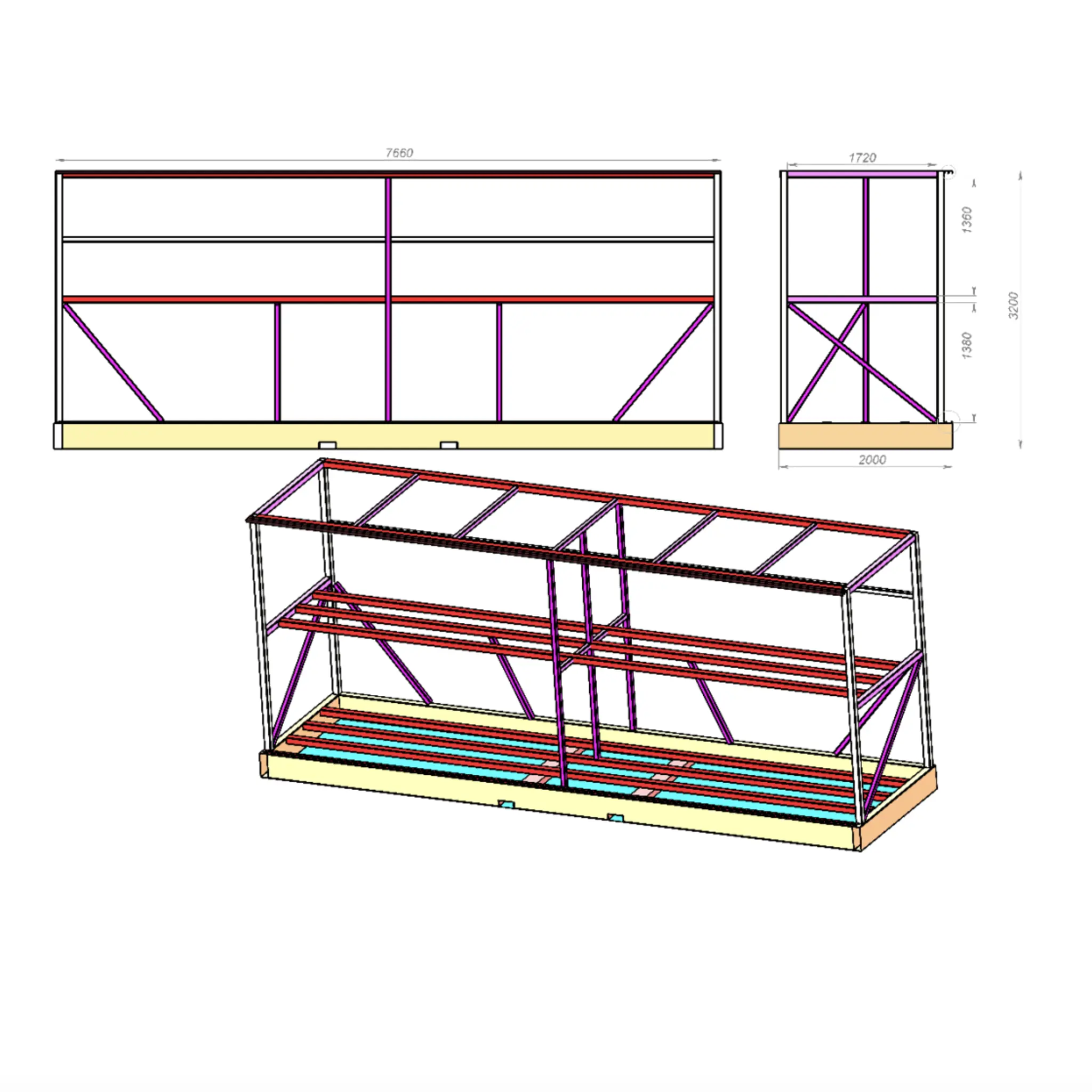

The base of this unit is manufactured from mild steel sheet and uses RHS cross members and pressed ribs for additional strength. All the corner posts and shelves, main rails and cross members are manufactured from rolled hollow section and the back, sides and door panels are pressed from mild steel sheet which is corrugated where required. The roof is pressed and fitted with suitable bracing, welded around the perimeter and fitted with crane lifting points, and the steel sliding doors run on easy glide track. Constructed from mild steel, the sump is fully seam welded and fitted with steel pallet channels. The sump
as you would expect complies fully with all current regulations relating to sump capacities and the underside is fitted with plinths to eliminate contact with ground and reduce the risk of corrosion. Pallets on the upper level sit directly onto a steel support frame and prior to painting the unit is fully shot blasted to provide a clean and keyed surface.

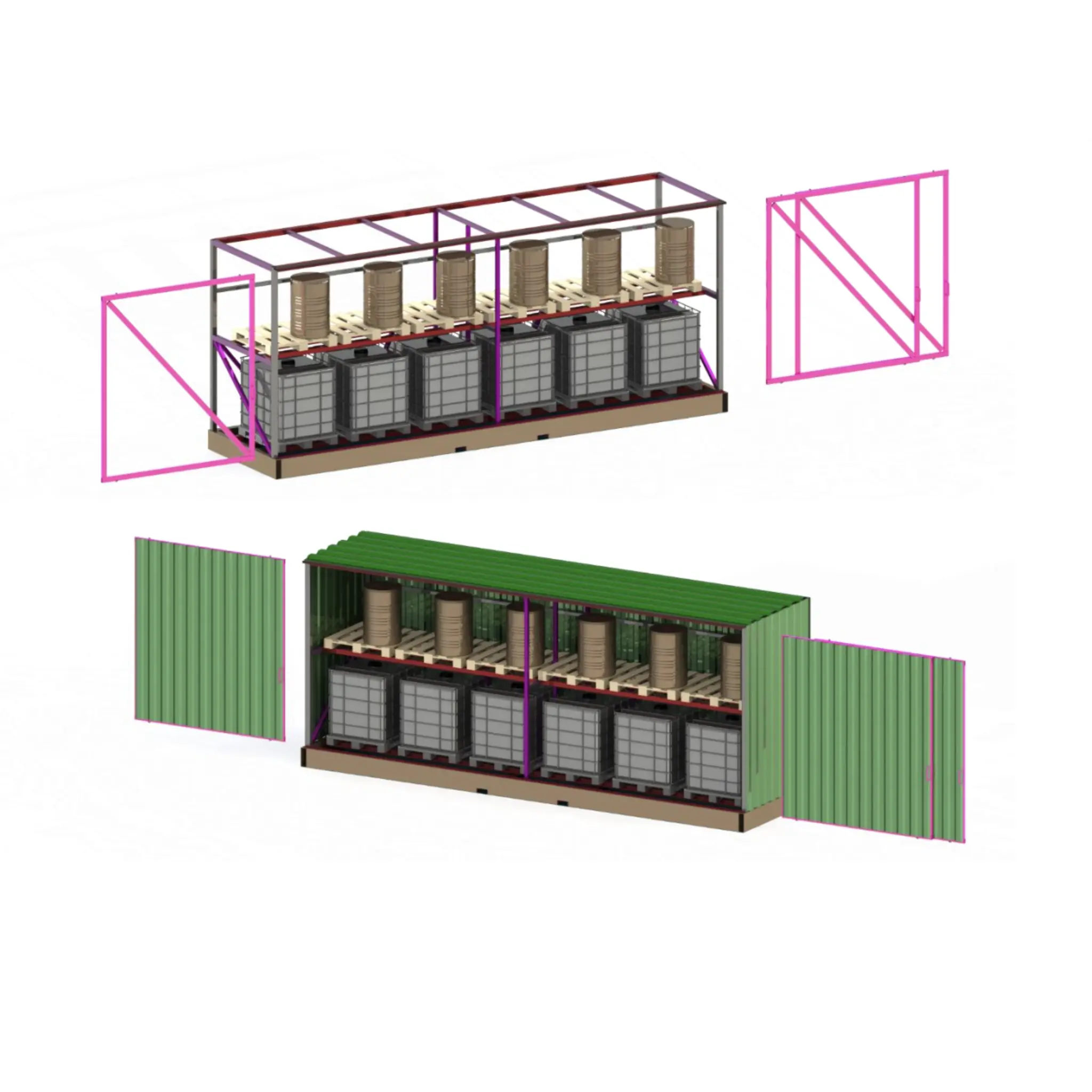

This model can hold up to 48 x 205 ltr drums or 12 x 1000 ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200 mm x 800 mm pallets.

Technical specifications:

External size: 7800 mm L x 2130 mm W x 3355 mm H
No of containers: 48 x 205ltr drums or 12 x 1000ltr IBC’s
Sump capacity: 4500ltr
Colour: Blue
Tare weight: 4000kg
Type of doors: sliding
Paint specification: A high build, quick drying primer/topcoat paint specifically designed for use directly
on to metal or bare steel, this paint contains zinc phosphate anti-corrosive pigments, chemically
resistent.
Additional option: automatic fire extinguisher

Production time: 30-60 days after prepayment receive
Delivery time: max 60 days after prepayment receive
