For Stalgen multilayer floor boards there are two thicknesses to choose from:
1. 12 mm/3.2 mm:

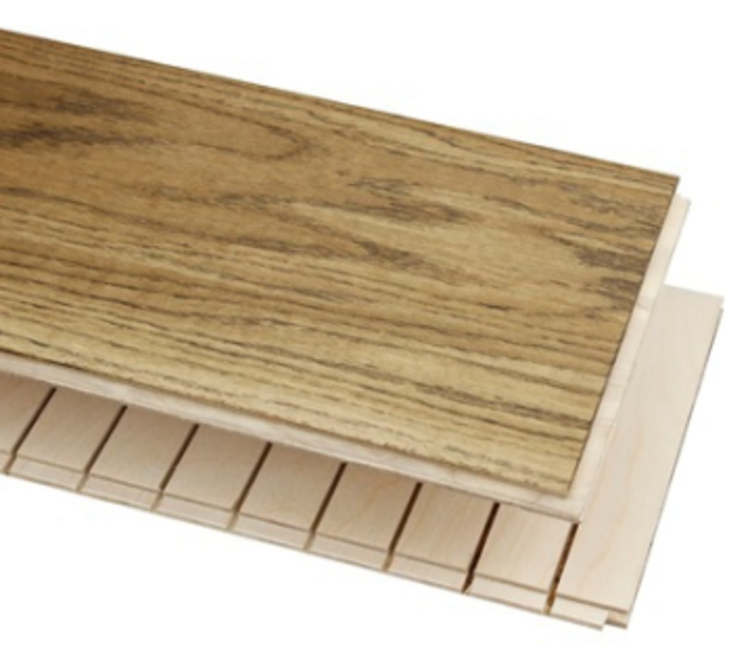

Construction: solid one strip oak or ash toplayer glued on birch plywood using thermoreactive polyurethane glue
Top layer: oak; ash (average density 700 kg/m3, thermal conductivity 0,17 W/(mK))
Bottom layer: birch plywood (emission of formaldehyde – ULEF; density 700 kg/m3; thermal conductivity 0,17 W/(mK))
Moisture content: 8±2%
Thickness:
total: 12±0,2 mm
wear layer: 3,2±0,2 mm
bottom layer: 8,8±0,2 mm
Width:
oak: 135 mm; 165 mm; 185 mm; 260 mm
ash: 165 mm; 185 mm; 210 mm
Length:
for width 135 mm: 600-1800 mm ±50 mm
for width 165 mm, 185 mm, 260 mm: 600-1400 mm ±50 mm; 1400-2200 mm ±50 mm; 2200-3000 mm ±50 mm
T&G: 4 sides
Bevels: 4 sides; projection on surface 0,7 mm
Filler: light brown
Surface: light structured
Handling: keep in middle with face up only
Packaging: 4 boards wrapped in polythene
Application: indoor use only; suitable for heated and unheated subfloors
Installation method: glued down
Reaction to fire: Dfi-s1
2. 16 mm/4.4 mm:
Construction: solid one strip oak toplayer glued on birch plywood using thermoreactive polyurethane glue
Top layer: oak (average density 700 kg/m3 , thermal conductivity 0,17 W/(mK))
Bottom layer: birch plywood (emission of formaldehyde – ULEF; density 700 kg/m3 ; thermal conductivity 0,17 W/(mK))
Moisture content: 8±2%
Thickness:
total: 16±0,2 mm
wear layer: 4,5±0,2 mm
bottom layer: 11,6±0,2 mm
Width: 240 mm; 300 mm
Length: 600-1400 mm ±50 mm; 1400-2200 mm ±50 mm ; 2200-3000 mm ±50 mm;
T&G : 4 sides
Bevels: 4 sides; projection on surface 0,7 mm
Filler: light brown
Surface: light structured
Handling: keep in middle with face up only
Packaging: 4 boards wrapped in polythene
Application: indoor use only; suitable for heated and unheated subfloors
Installation method: glued down
Reaction to fire: Dfi-s1
Grades:
Premium – uniform in appearance and colour flooring. If there are any filled knots or knot holes, they’ll likely be very small and quite faint in colour. Free from sapwood.
Select – contains a few more variations, knots and filled knot holes than premium grade. This flooring is still largely uniform in appearance with moderate colour variation and knots which give it a more natural appearance. Free from sapwood.
Living – contains a few more variations, knots and filled knot holes than premium grade. This flooring is still largely uniform in appearance with moderate colour variation and knots which give it a more natural appearance. Narrow sapwood allowed.
Classic – contains plenty of knots and colour variation. Classic grade flooring sometimes has natural colour filled holes and wood inserts to give smooth appearance. Free from sapwood.
Rustic – most natural looking of all the flooring types. It has the largest range of colour variation and will have plenty of knots, knot holes, wooden inserts and natural grooves – filled in with natural wood filler for a smooth yet rustic appearance. Sapwood allowed.
Optional:
Surface mechanical treatment: medium brushed; deep brushed; fortified; sawmarks
