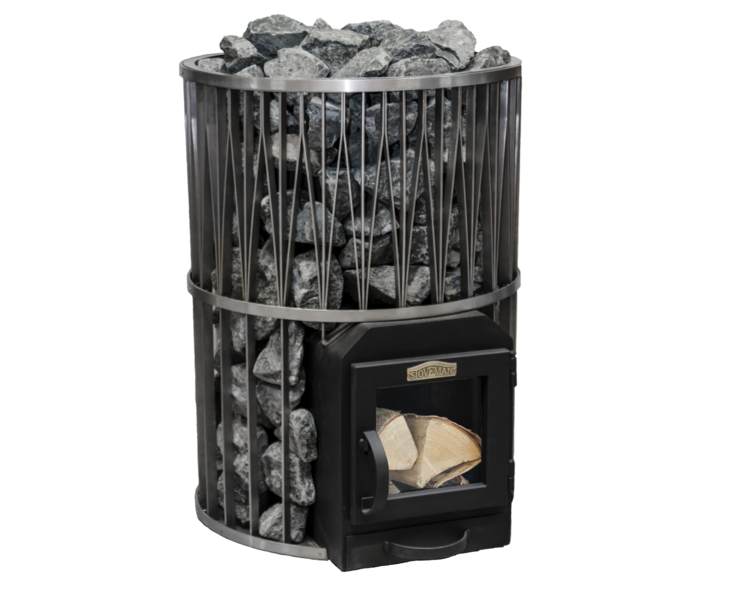

Sauna heater Stoveman Crown RV 20R

Product code: 13110151

STOVEMAN CROWN RV 20R sauna heater is recommended for a dry or humid sauna experience in a home situation. Instead of a net, this oven is surrounded by a stainless steel casing that gives the oven a great look. Stoveman sauna heater guarantees an enjoyable, mild and durable sauna experience thanks to the large amount of heater stones that block the radiation from the metal surfaces.

Stoveman CROWN RV 20R sauna heater has an improved ventilation system with air flow channels on the external walls of the heating unit! The ventilation tubes receive the air from the bottom of the heater, it rises upwards as it gets heated and exits between the top stones.

If desired, a heat exchanger SV1 for heating water can be installed on the sauna heater.

Materials:

• All parts of the heater in contact with flames are made of 5mm sheet steel
• The bottom of the sauna heater is made of 3mm sheet steel
• Ash box is made of 2 mm sheet steel
• The hand crafted ash grate is made of 10×20 mm square steel

Recommendation:

To connect the Stoveman sauna heater with the chimney it is recommended to use pipes with CE marking withstanding a gas burning temperature of at least 600 degrees.

Technical information:

• Suitable for sauna rooms with capacity: 12-20 m³
• Amount of heater stones (The stones are not included in the set. The heater stones on the picture have an illustrative purpose.)
• Smoke outlet: 115 mm
• Equipped with soot flap
• Package dimensions: 57 × 68 × 85 cm (L/W/H)
• Weight: 97 kg
