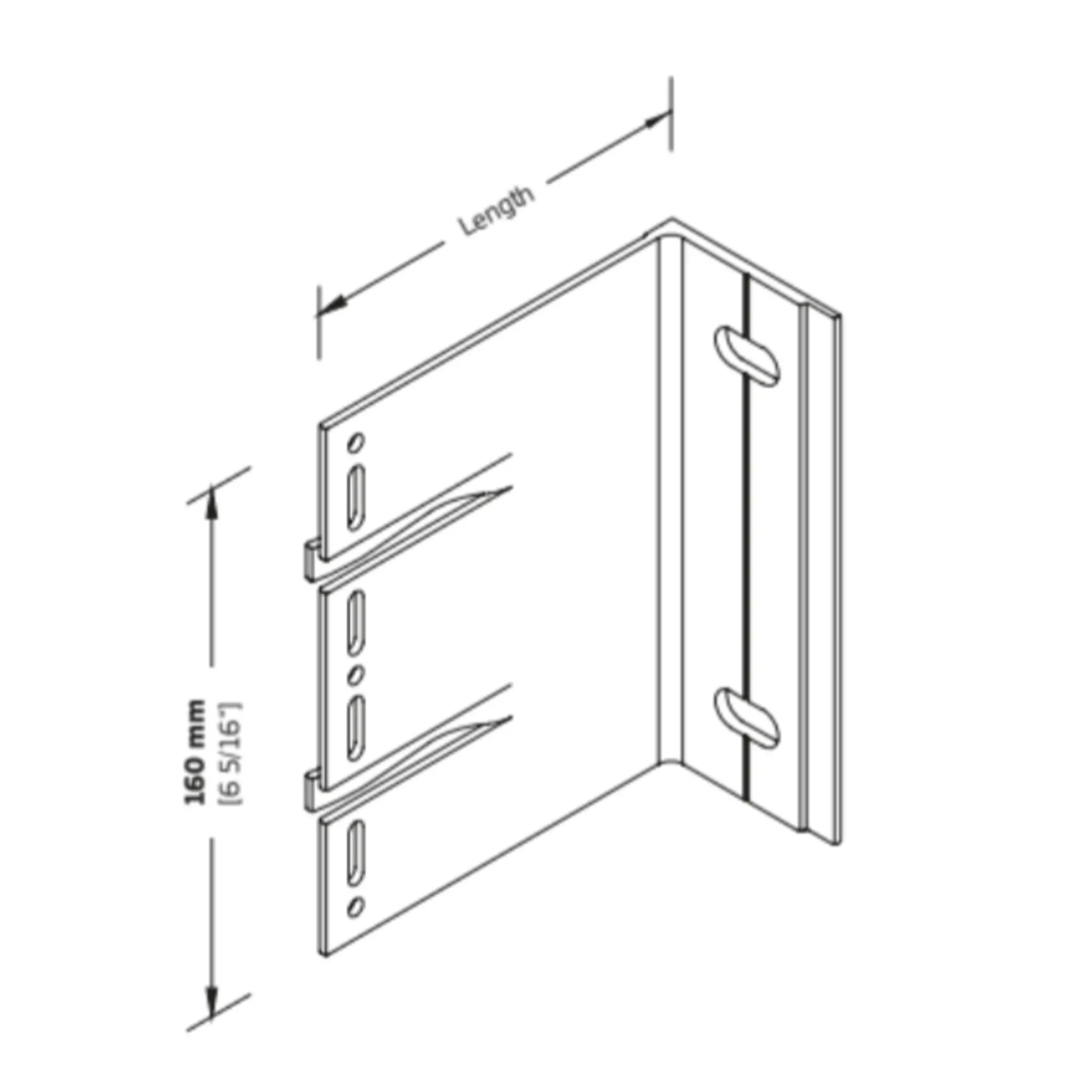

QVB aluminium double wall brackets

0.0

QVB wall brackets are usually used for fixed point / dead load support - absorbs dead load and part of wind load. Fasteners at the fixed point must be installed in the round holes.

Tnot inc. VAT.

0,00 €

Amount

Extruded aluminum, alloy AW 6063 T6 cavity depth from 57 mm [2 1/4″] to 285 mm [11 3/16″], built-in in/out adjustability of 35 mm [1 3/8″], unpainted, typ.

Brackets can be ordered with pre-installed thermo-pads.

Material: Polypropylene
Thickness: 5 mm [3/16”]
Item No: 02.lenght.160.fastenerT (e.g. 02.100.160.10T)

Technical information:

Length [mm]	Length [inches]	Item No.	Weight/pc [g]	Weight/pc [lb]	Package pcs
50	1 15/16	02.50.160.10	162	0.364	100
75	2 15/16	02.75.160.10	210	0.473	100
100	3 15/16	02.100.160.10	204	0.462	100
125	4 15/16	02.125.160.10	242	0.548	90
150	5 7/8	02.150.160.10	293	0.663	70
180	7 1/16	02.180.160.10	343	0.775	70
210	8 1/4	02.210.160.10	419	0.944	50
240	9 7/16	02.240.160.10	487	1.1	50

Options:

Bracket-to-Wall Connection	Item No.
Holes for M10 [3/8” dia.] fastener as standard; suitable for concrete/masonry wall	02.length.160.10
Holes for M8 [5/16” dia.] fastener; suitable for concrete/masonry walls	02.length.160.8
Holes for ø6.3 [1/4” dia.] fastener; suitable for stud walls	02.length.160.63
