QTB stainless steel wall brackets provide durable and reliable support for fixed and sliding points. Made from high-quality AISI 316L stainless steel, they ensure strong load-bearing capacity and resistance to weather conditions. Ideal for concrete, masonry, and stud walls, with various fastening options available.
Technical information:
| Bracket Type | Usage | Fastener Requirements | Dimensions | Item Number |

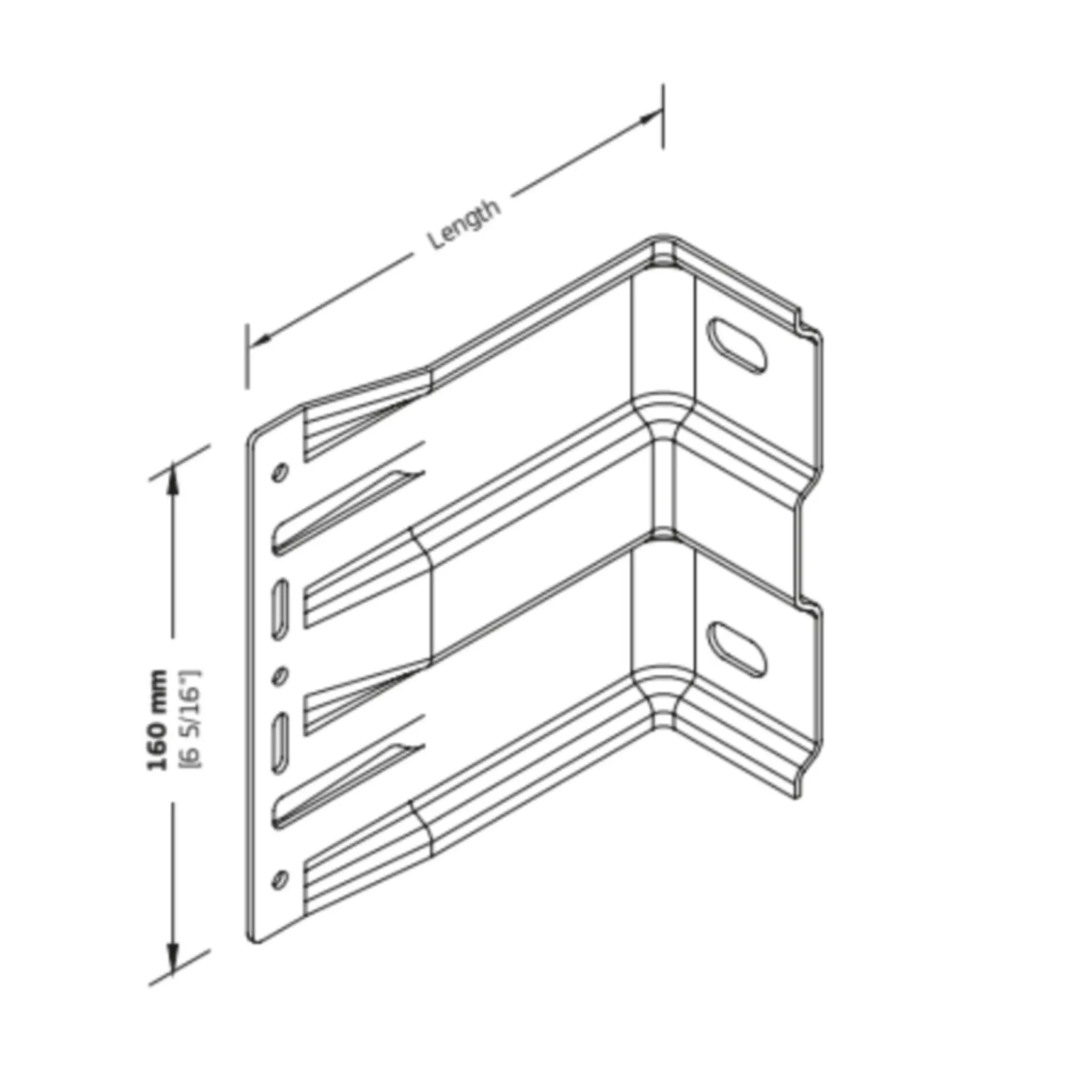

| Double Bracket | Used for fixed point / dead load support – absorbs dead load and part of wind load. | Fasteners at the fixed point must be installed in the round holes. | 160 mm [6 5/16”] height | 02.4.length.160.10 (Ø10 mm fastener, concrete/masonry walls), 02.4.length.160.63 (Ø6.3 mm fastener, stud walls) |

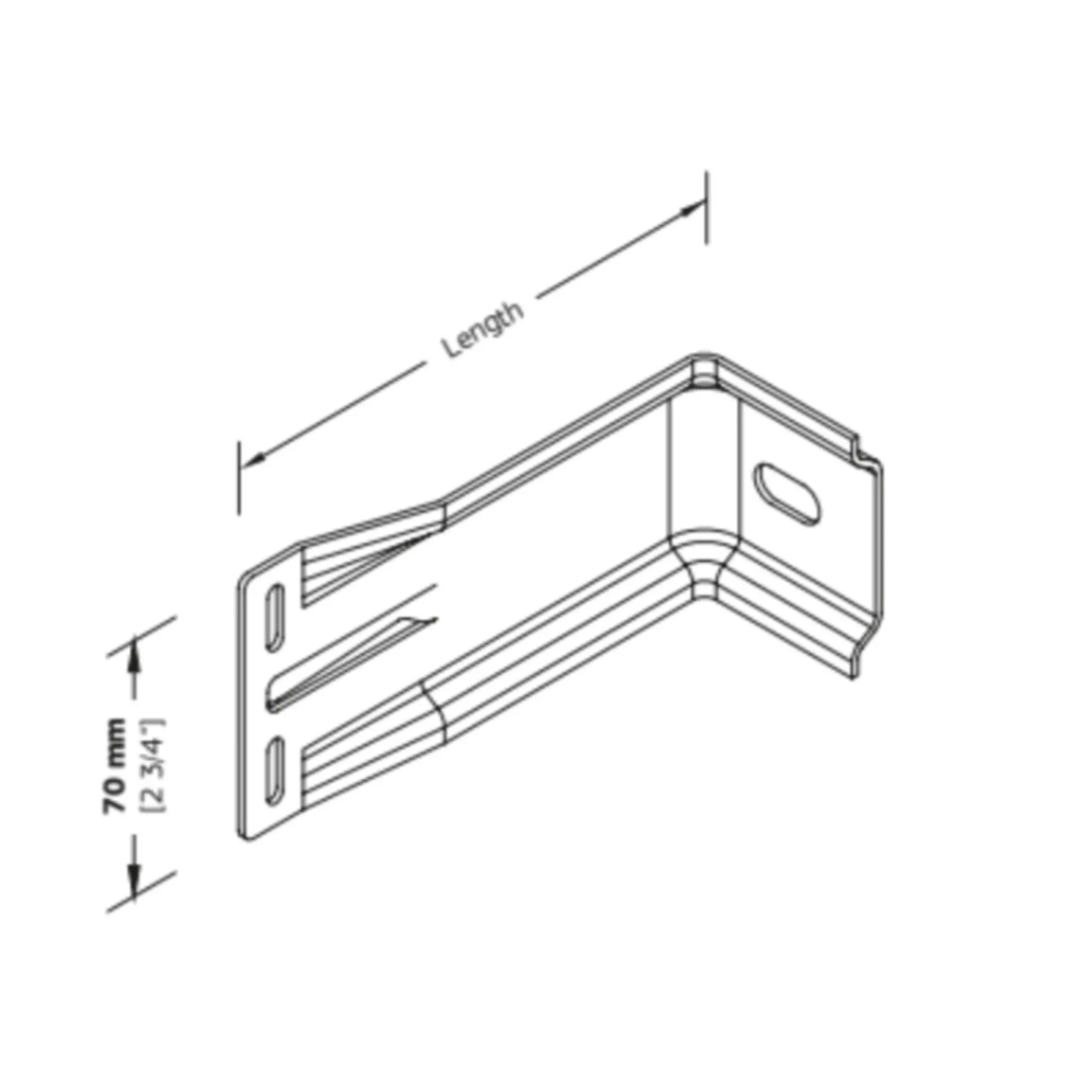

| Single Bracket | Used for sliding point / wind load support only – absorbs wind load and thermal movement of the profile. | Fasteners at the sliding point must be installed centered on the slotted hole to allow the profile to expand/contract freely. | 70 mm [2 3/4”] height | 02.4.length.70.10 (Ø10 mm fastener, concrete/masonry walls), 02.4.length.70.63 (Ø6.3 mm fastener, stud walls) |
Range of adjustments:
A minimum 20 mm (3/4”) overlap between the bracket and the profile is required.
All adjustment dimensions are based on a 60 mm (2 3/8”) deep vertical profile.
Material 1.4404 (AISI 316L) stainless steel.
Project specific wall brackets can be supplied upon request.
Get in touch with us for more details or a personalized quote!
