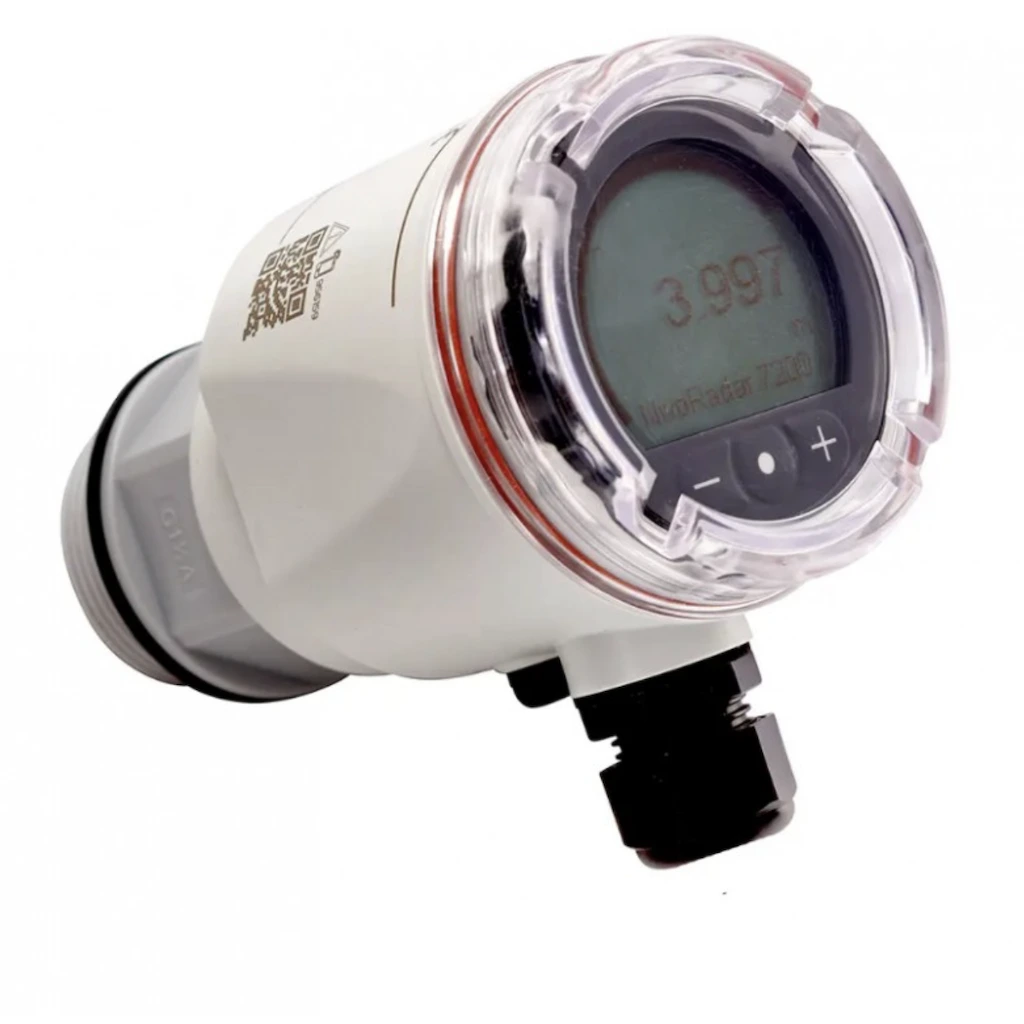

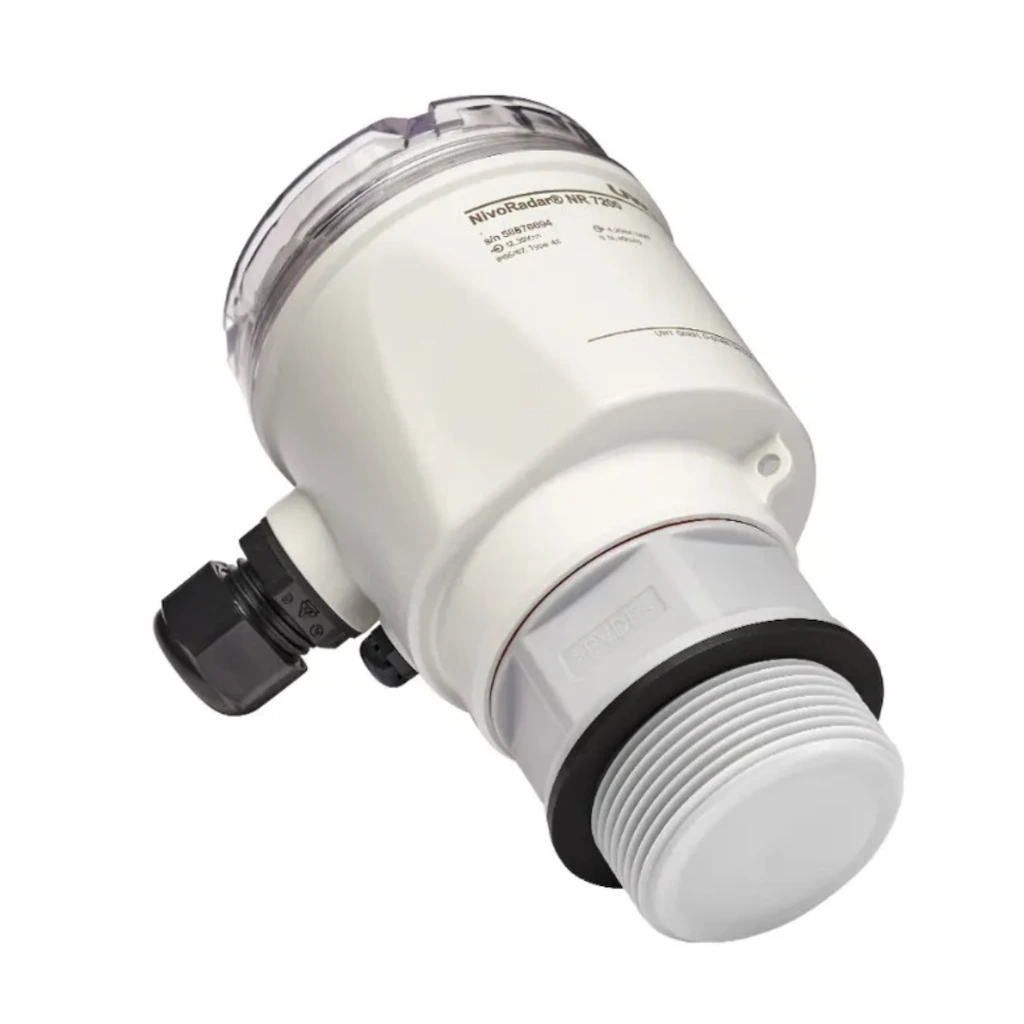

NR 7200 Radar sensor, 12-35DC, max 15M, 4-20MA+HART, -40°C…+80°C, -1BAR…+3BAR, G1½”, Display, IP66/67

0.0

Thanks to the high degree of ingress protection and the durable materials, the sensor is ideal for liquid applications and can also be used in smaller bulk solids silos. The measurement is carried out up to the antenna with no blocking distance in the upper zone. The sensor values can be set or read directly on the device via the optional LED display. The free-radiating radar sensor has a fast response time and can also be configured via mobile devices and the UWT LevelApp. Configuration via UWT LevelApp.

Tnot inc. VAT.
1 320,00 1 455,00

Thanks to the high degree of ingress protection and the durable materials, the sensor is ideal for liquid applications and can also be used in smaller bulk solids silos. The measurement is carried out up to the antenna with no blocking distance in the upper zone. The sensor values can be set or read directly on the device via the optional LED display. The free-radiating radar sensor has a fast response time and can also be configured via mobile devices and the UWT LevelApp.
Configuration via UWT LevelApp.



Technical information:

  • Supplier: UWT
  • Power supply: 12-35V DC
  • Series: NivoRadar
  • Measurement range max: 15 m
  • Working temperature: -40˚…+80˚C
  • Protection class: IP66/67
  • Housing: Plastic
  • Output: 4…20 mA + HART
  • Thread/conduit entry: G1½”
  • Pressure: -1…3bar
