NR 7100 radar sensor, 12-35DC, max 8m, 4-20mA, -40°C…+60°C, -1bar…+3bar, G1½”, IP66/67

0.0

Supplier	UWT
Power supply	12-35V DC
Series	NivoRadar
Measurement range	max 8m
Working temperature	-40˚...+60˚C
Protection class	IP66/67
Housing	Plastic
Output	4-20mA
Thread/conduit entry	G1½”
Pressure	-1...3bar

Tnot inc. VAT.

950,00 €1 200,00 €

Amount

Add to quote

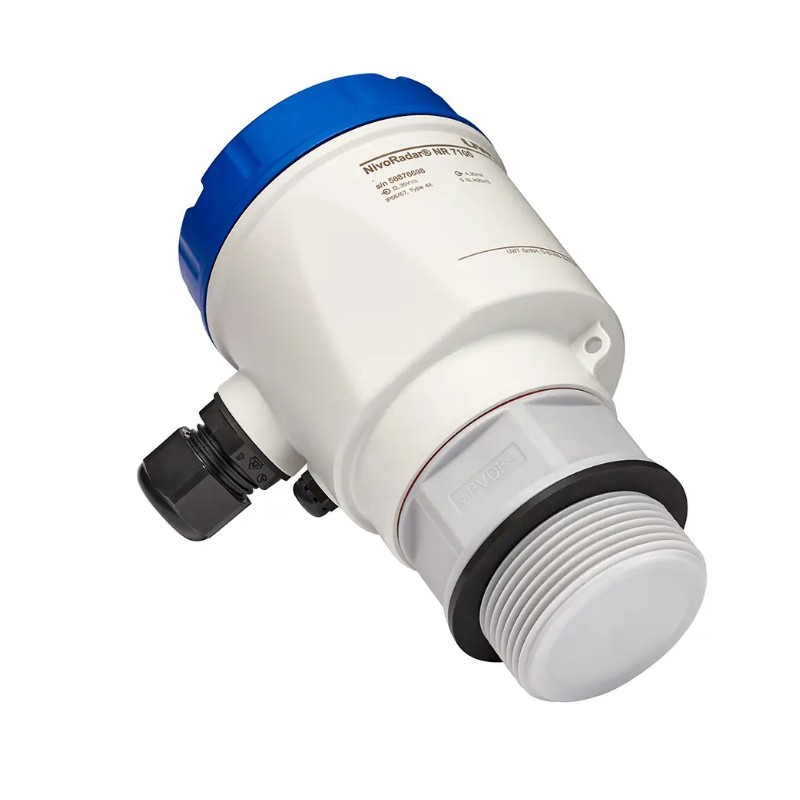

The non-contact 80 GHz FMCW radar sensor NivoRadar^® NR 7100 with a narrow beam angle of 8° is used in various industrial applications in storage silos, process tanks and IBC containers for continuous level measurement. The free-radiating level transmitter has a compact design with a 1 1/2″ process connection (PVDF) and a measuring range of up to 8 m as well as a very fast response time. The food-compliant radar devices are suitable for use in processes in the food industry. The radar level transmitters can be used in aggressive media such as acids, alkalis and solvents as well as in highly viscous liquids and oils.

Supplier	UWT
Power supply	12-35V DC
Series	NivoRadar
Measurement range	max 8m
Working temperature	-40˚…+60˚C
Protection class	IP66/67
Housing	Plastic
Output	4-20mA
Thread/conduit entry	G1½”
Pressure	-1…3bar
