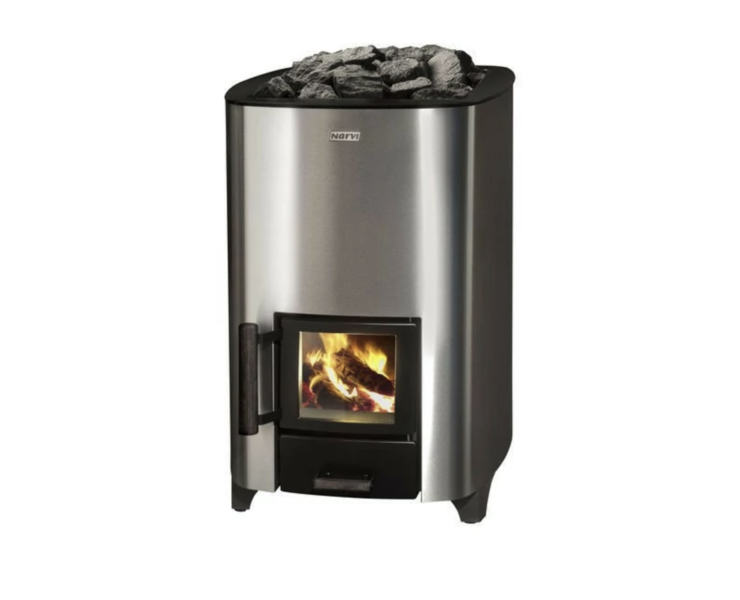

Narvi wood burning heater NC16

The glass door allows for easy maintenance of a steady fire, adding a cozy atmosphere to the steam room. The sturdy wooden handles of the door and ashtray are comfortable to use because they do not get too hot. The stove has adjustable legs, making it easy to install.

The stove comes with a connecting pipe for rear flue connection. The stove can also be connected to the flue from the top, requiring a separate connecting pipe.

Product information:

• Brand: Narvi
• Stove model: NC 16
• GTIN code: 6418530123115
• Height (mm): 780
• Width (mm): 500
• Depth (mm): 580
• Flue connection diameter (mm): 119
• Product weight (kg): 122
• Color: Steel
• Material: Steel
• With water tank: No
• With glass door
• Bottom edge of the flue connection from the floor at the back: 58 cm
• Firebox roof thickness: 10 mm
• Maximum amount of stones (kg): 50
• Minimum sauna volume (m³): 6
• Maximum sauna volume (m³): 16
• Safety distance to the ceiling (mm): 1250
• Safety distance to the side (mm): 150
• Safety distance to the front (mm): 500
• Safety distance to the back (mm): 150
• Location of the flue connection: At the back

Weight of the package:

• Freight weight (kg): 72.00
