MAT system

0.0

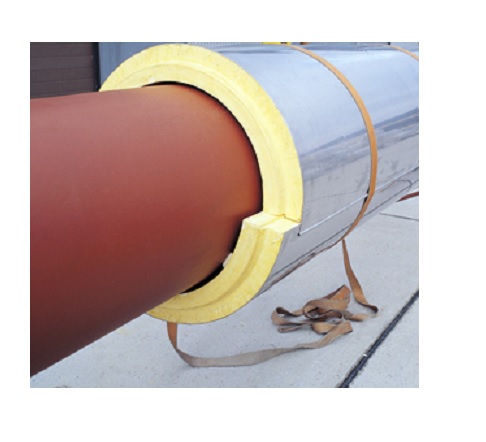

Our offer includes an easy-to-install MAT system that has been developed for the effective isolation of above-ground heating networks. The MAT system is thermal insulation of pipelines resulting from a special rigid polyurethane foam, which has optimal parameters for insulating heating, cooling and air-conditioning pipelines, as well as heating devices, e.g. heat exchangers, water heaters, filter clarifiers and fittings.

Tnot inc. VAT.

40,90 €48,50 €

Amount

About the MAT system

The modern SYSTEM MAT pipeline insulation is intended for pipelines in the diameter range from DN25 to DN1000 with a thickness in accordance with F14-B-02421: 2000. Coatings used for pipelines are distinguished by a special cylindrical shape and for simplified assembly, they consist of two halves, which are covered with a protective jacket.

Types of protective coats:

galvanized steel sheet,
varnished galvanized steel sheet (different colors available),
aluminum sheet,
heat-sealable roofing felt,
PVC foil.

Insulation characteristics and its advantages:

insulation efficiency,
low λ factor (<0.0263 W / MK at 40 ° C),
apparent density (40-60kg / m3),
water absorption
very small (about 3%),
chemical resistance
very good (resistance to solvents,
petroleum materials, dilute acids and bases as well as rotting and decay),
classification in the field of reaction to fire – class E according to PN-EN 13501-1 + A: 2010,
organic,
chemically and biologically inert,
easy assembly,
very good, durability – warranty for 5 years.
