Lillevilla Lompolo – 20 m² / 44 mm

Spacious Storage Building

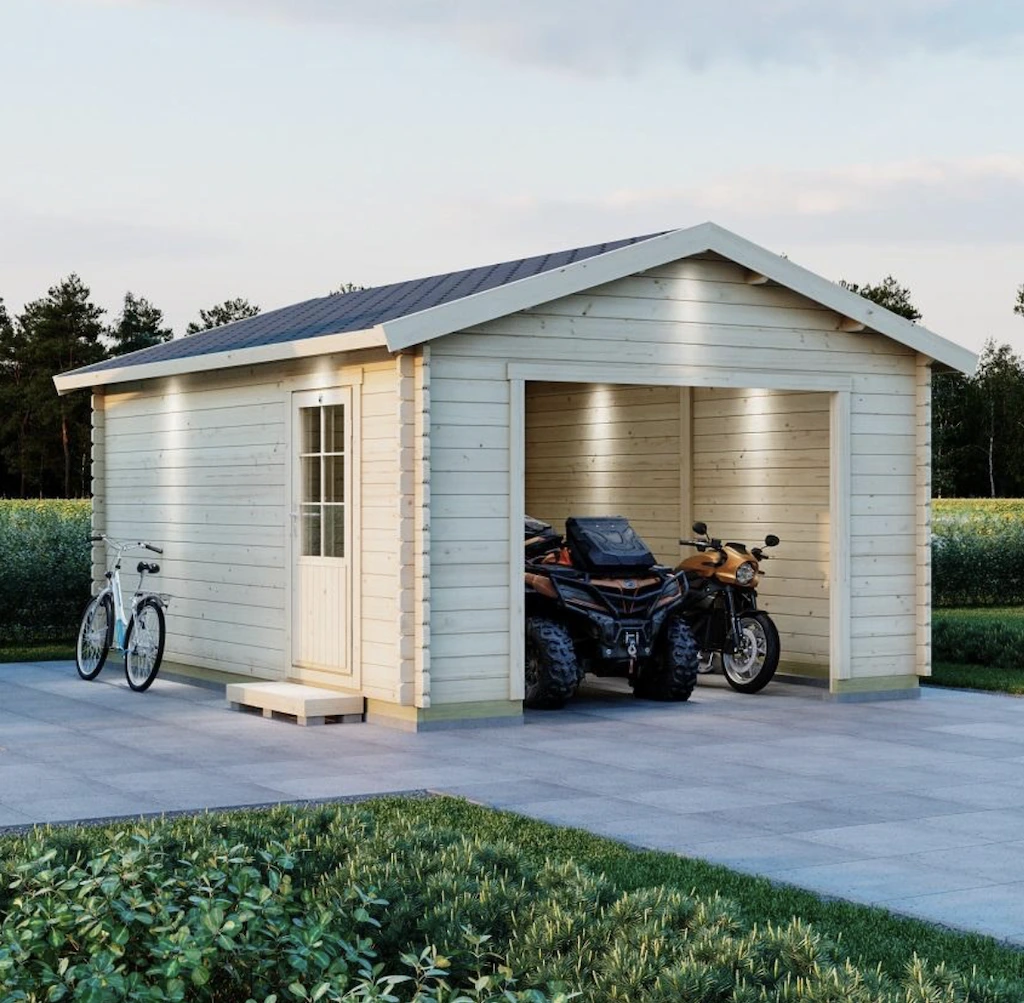

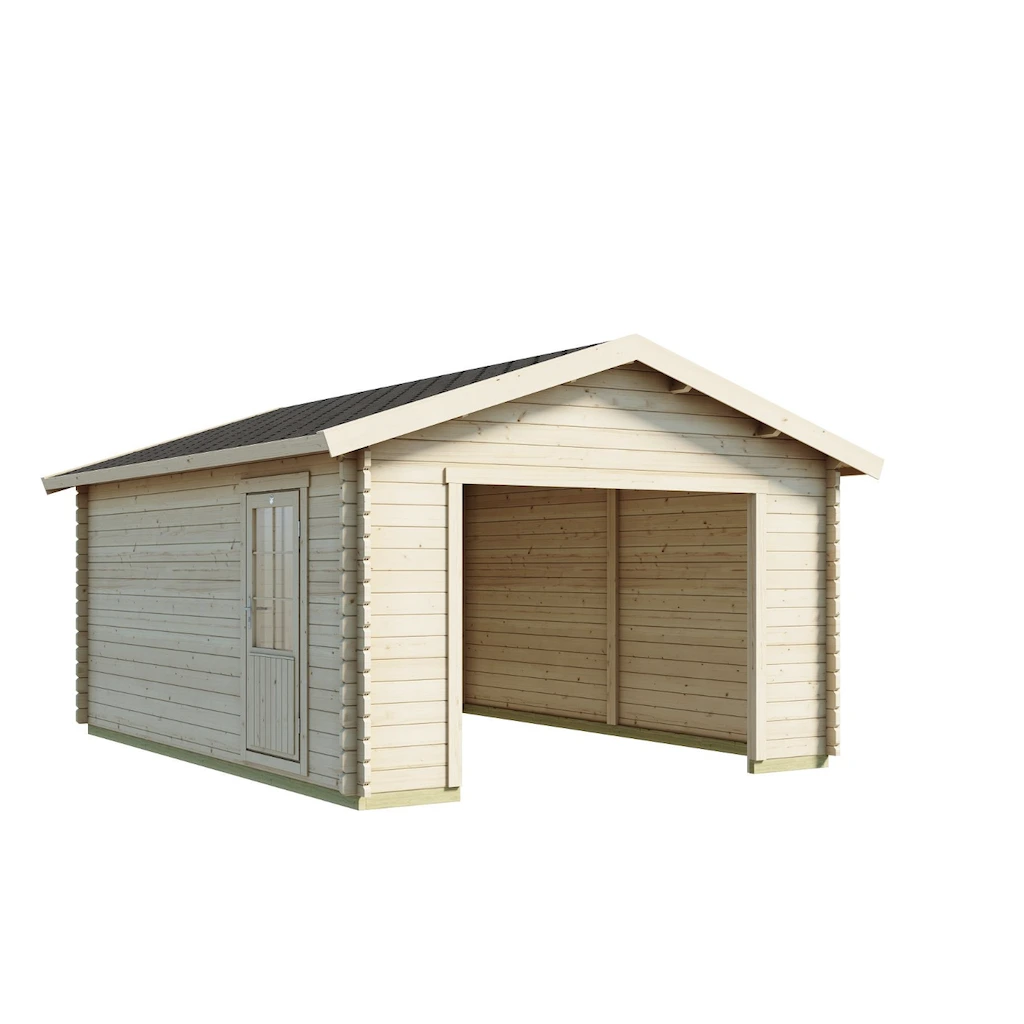

The Lillevilla Lompolo is a spacious storage building with a floor area of nearly 20 square meters. It measures 3.9 meters in width and 5.1 meters in length, with a ridge height of approximately 298 cm and a sidewall height of 223 cm. The Lillevilla Lompolo includes a convenient side door that can be installed on either side wall, at the front or back. However, the door’s orientation cannot be changed.

Included in the Delivery

The logs are 44 mm thick with a double tongue-and-groove design, ensuring exceptional durability. The product package includes logs, the door, and roof boards, along with fittings, nails, and screws. Threaded rods for securing the corners are also included. Roofing material is not included but can be ordered separately. Choose from Katepal Classic KL shingle roofing or Katepal TopTite 3 roll roofing. The roofing material must be installed immediately after assembly. Tile roofing is not recommended.

Note: The floor is not included in the delivery.

The cabin parts are pre-processed at the factory. However, since assembly is required, ensure you have common tools such as a measuring tape, spirit level, hammer, saw, screwdriver, and drill.

Surface Treatment

The building’s surface treatment must be carried out immediately after assembly, weather permitting. Use breathable surface treatment products specifically designed for log surfaces. Paints that create non-breathable plastic films must not be used.

Building Permit Information

Check with your local building authority in advance regarding the need for a building permit. Drawings required for the application can be downloaded or requested from our customer service.

Technical specifications:

Floor area (m²): 19.9
Base dimensions (mm x mm): 3900 x 5100
Wall thickness (mm): 44
Floorboards: Not included
Ridge height (mm): 2980
Sidewall height (mm): 2230
Roof area (m²): 26
Roof dimensions (mm x mm): 4580 x 5530
Door: Type C10 897×1820 (CE-certified insulated safety glass 4/6/4 mm)
Roofing material: Not included
Package dimensions and weight: 5550 x 900 x 1150 mm / 1440 kg
Product Code (SKU): 0144 39 51 02

Additionally available:

Roof materials
30123 Shingle roofing package (+490.50 €)
30129 Sealed seam roofing package (+490.50 €)

Eaves Flashing Package
30136 Eaves Flashing Package (+135.00 €)

Insulation Package
30109 Roof Insulation Package (+1372.50 €)

Elevation Package
9517 – 2 Log Elevations (+585.00 €)

Assembly instructions

Drawings for permit application

Surface treatment instructions
