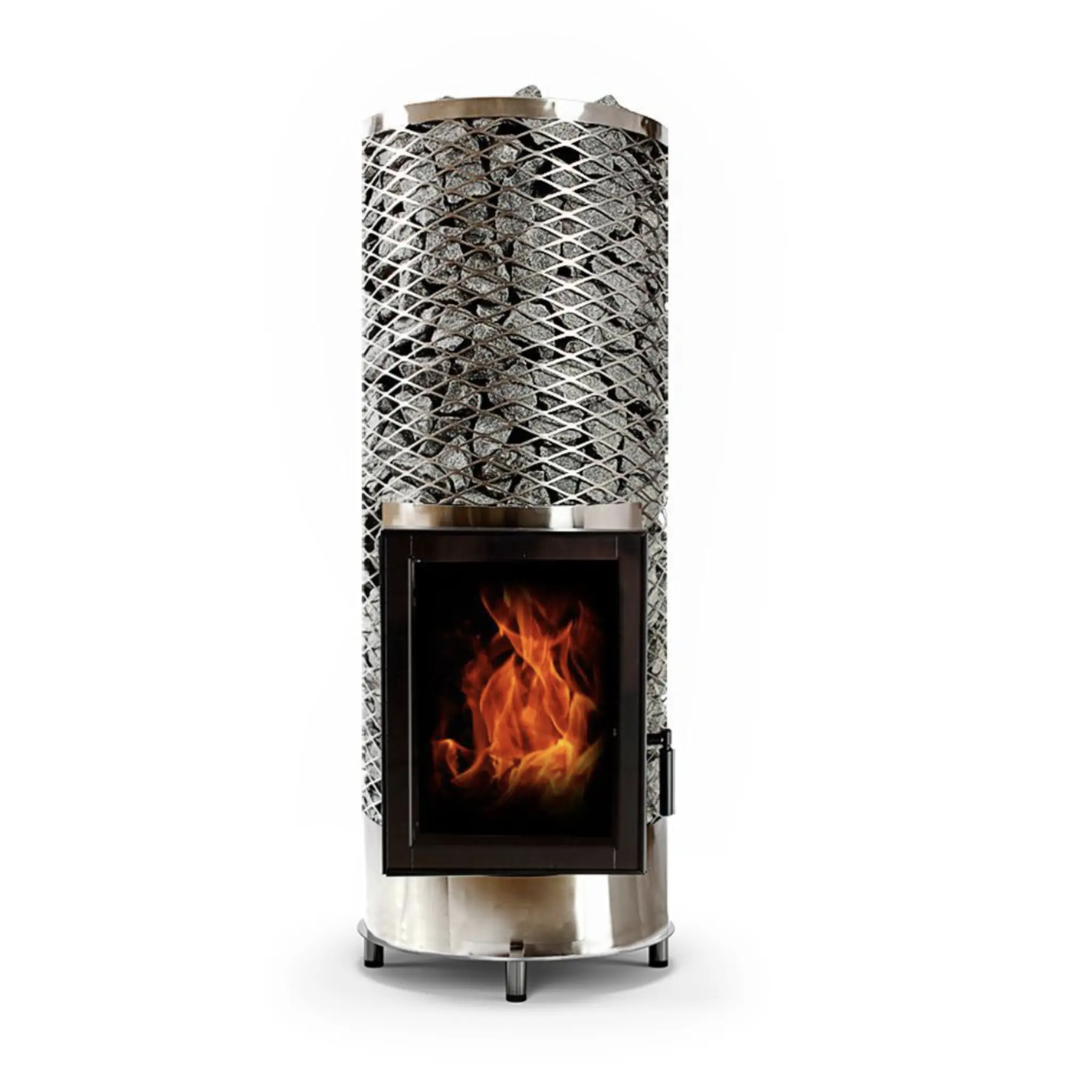

Kivi-IKI Jr wood burning stove, 10–20 m³

Product code: NETKIVIIKIJR

GTIN Code: 6430041121664

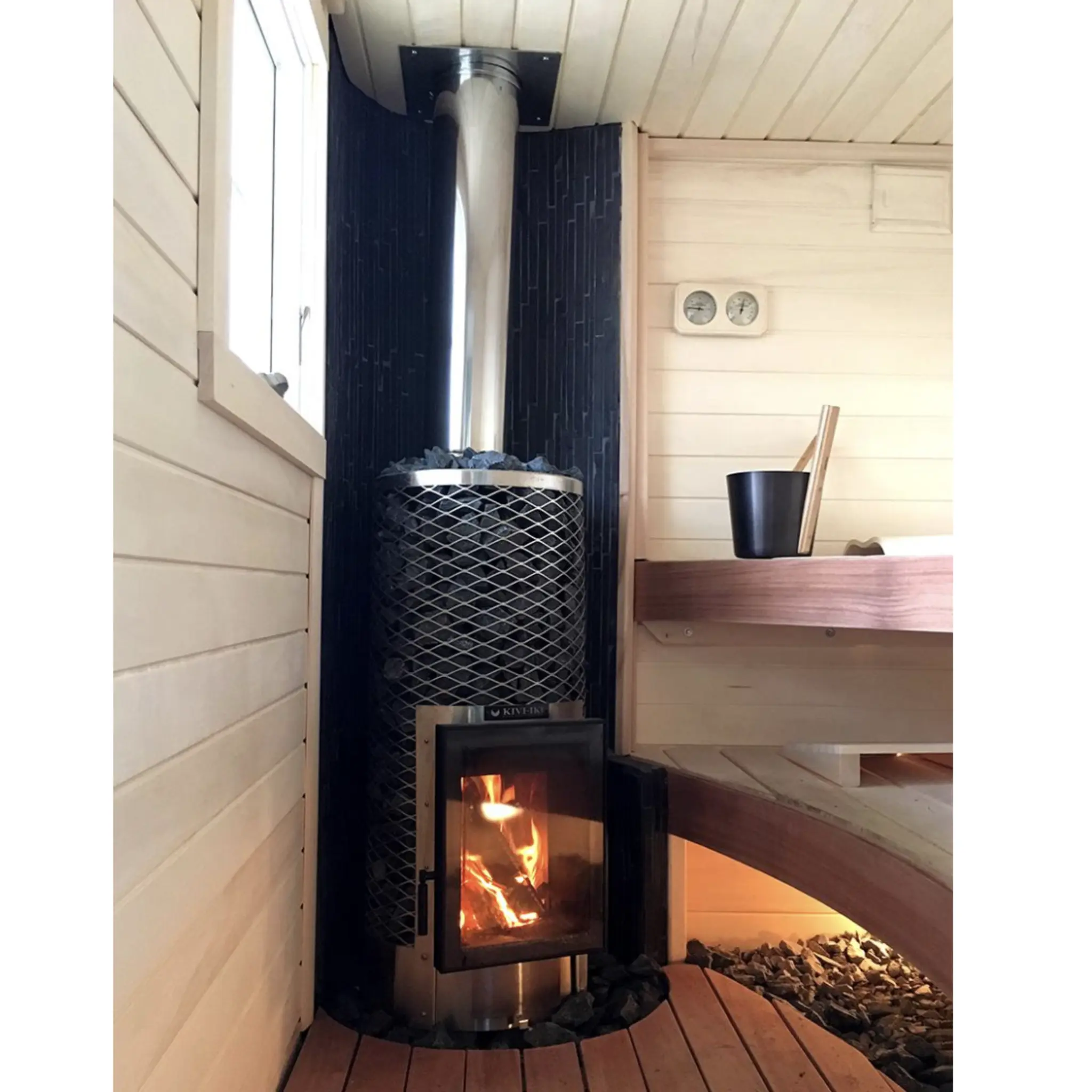

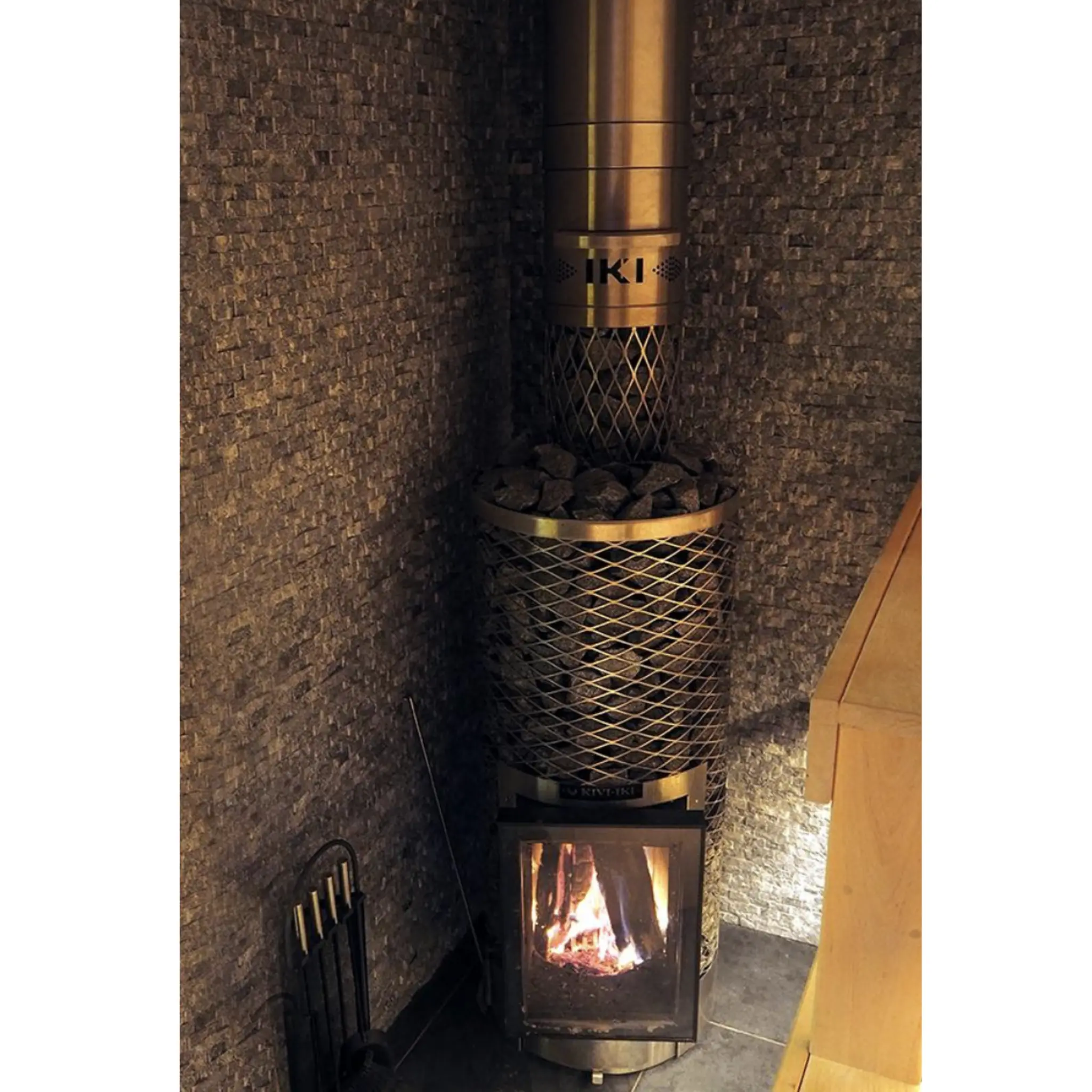

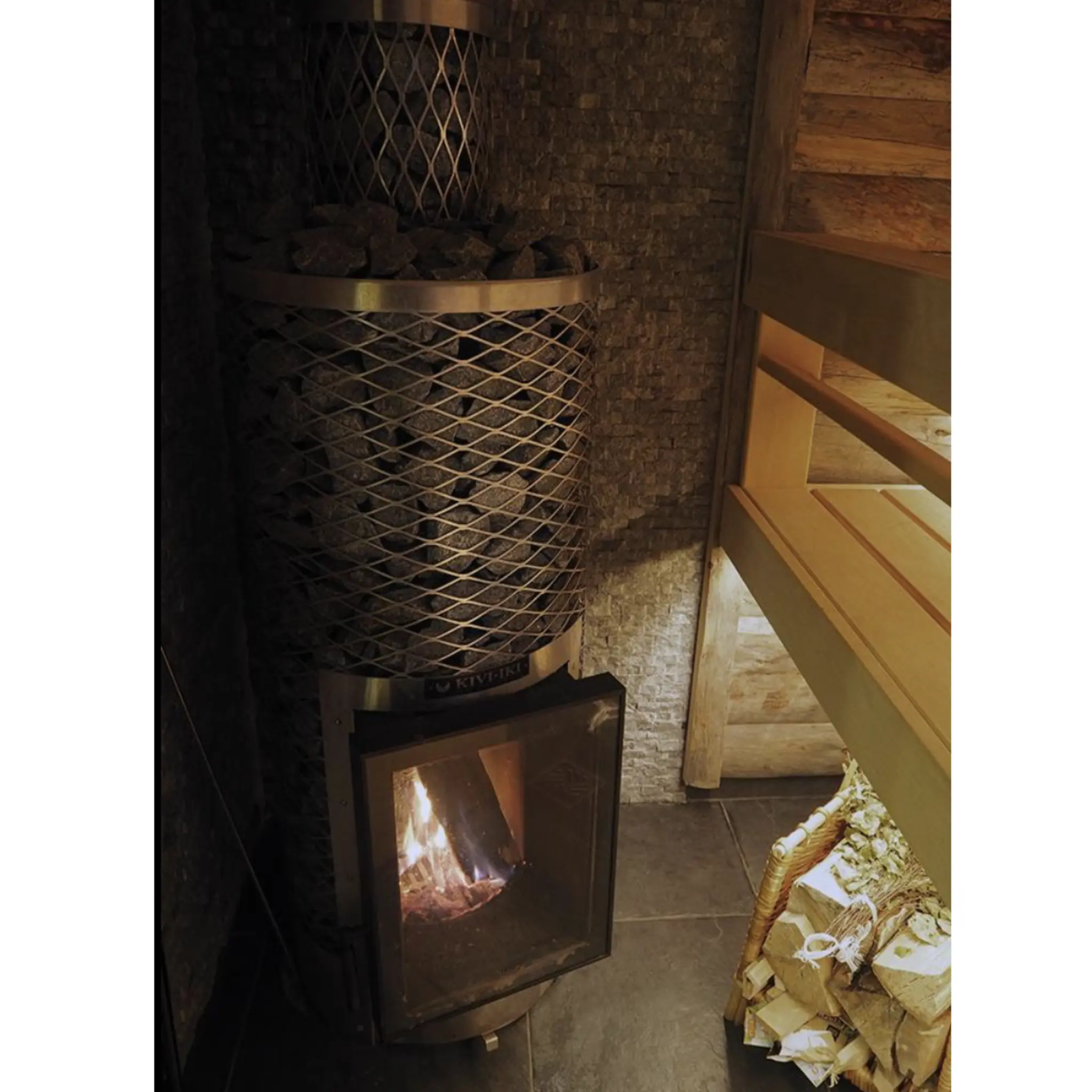

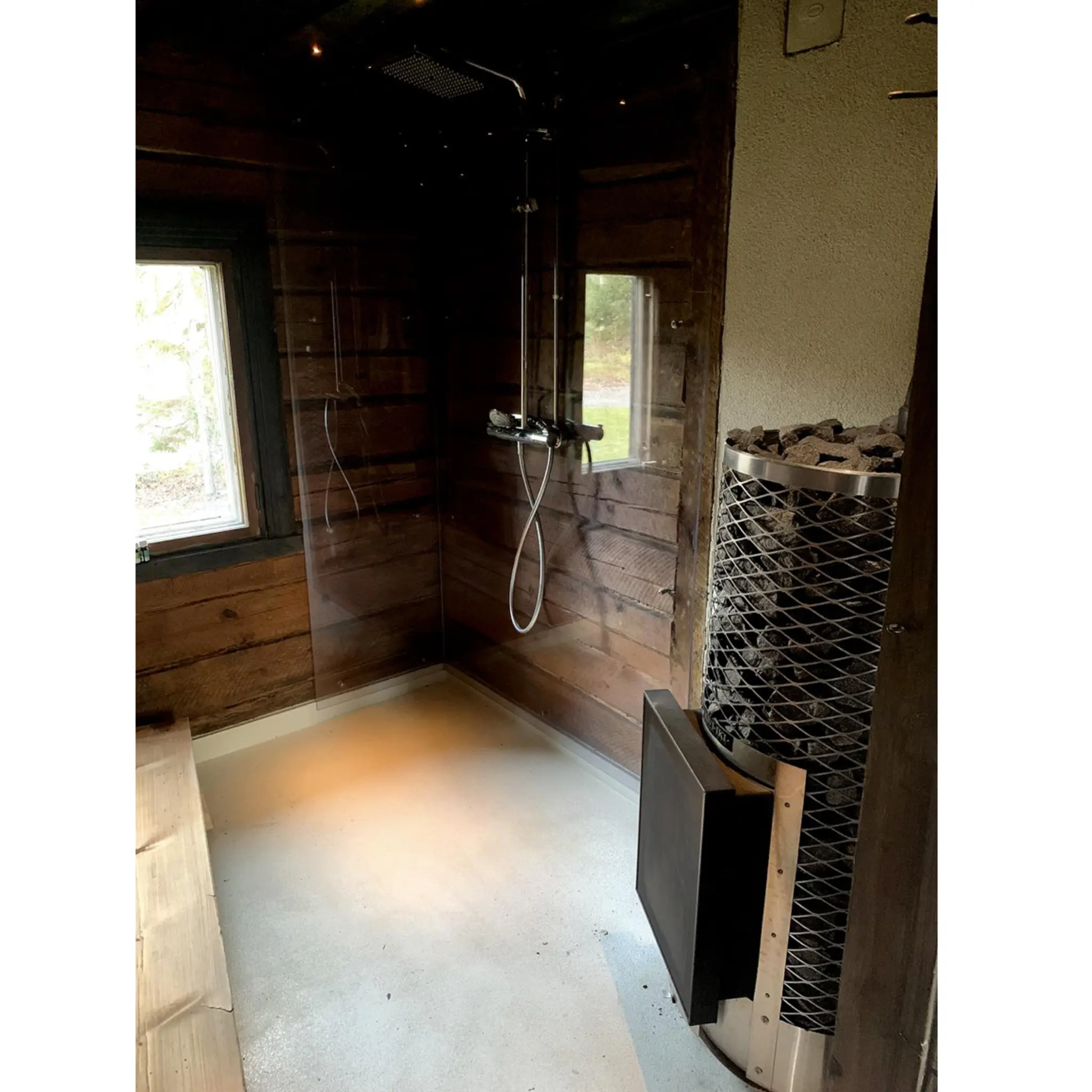

Powerful steam combined with high-quality materials creates the foundation for long-lasting sauna enjoyment in 10–20 cubic meter saunas. Thanks to the large glass door, the KIVI-IKI wood stove also acts as a light source in the sauna, bringing a natural glow and vitality to the space. The stove’s glass front makes the captivating movement of the flames a visible element in the sauna, challenging conventional stove design. The stove comes with a base, which is permanently bolted to the unit.

Safety distances to combustible materials: 25 cm to the sides, 25 cm to the rear, and 80 cm above.

Note: From an uninsulated/exposed chimney pipe, the required safety distance is 100 cm upward and 50 cm to the sides. The safety distance from the firebox collar to the side is 30 cm.

Product information:

• Brand: IKI Kiuas
• Model: Kivi-IKI

Product dimensions:

• Height (mm): 1160
• Width (mm): 480
• Depth (mm): 480
• Diameter (mm): 480
• Weight (kg): 70

Product features:

• Color: Steel
• Material: Steel
• Stove type: Cage-style heater
• Water tank included: No
• Glass door height: 47.5 cm
• Glass door width: 36 cm
• Wooden door handle, reversible hinge
• Heat output to room: 15.1 kW
• Maximum stone capacity (kg): 200
• Door: Glass door

Flue connection options:

• Option 1: straight pipe from the top to the ceiling
• Option 2: 90° pipe from the top to the wall
• Option 3: 45° pipe from the top to the wall
• Option 4: straight pipe through the mesh to the wall

Installation and usage:

• Minimum sauna volume (m³): 10
• Maximum sauna volume (m³): 20
• Safety distance to ceiling (mm): 800
• Safety distance to side (mm): 250
• Safety distance to rear (mm): 250

Note: Sauna stones are not included with the stove and must be ordered separately.

Installation instructions
