Kastor wood burning heater Saga 22 T

Product code: 289097

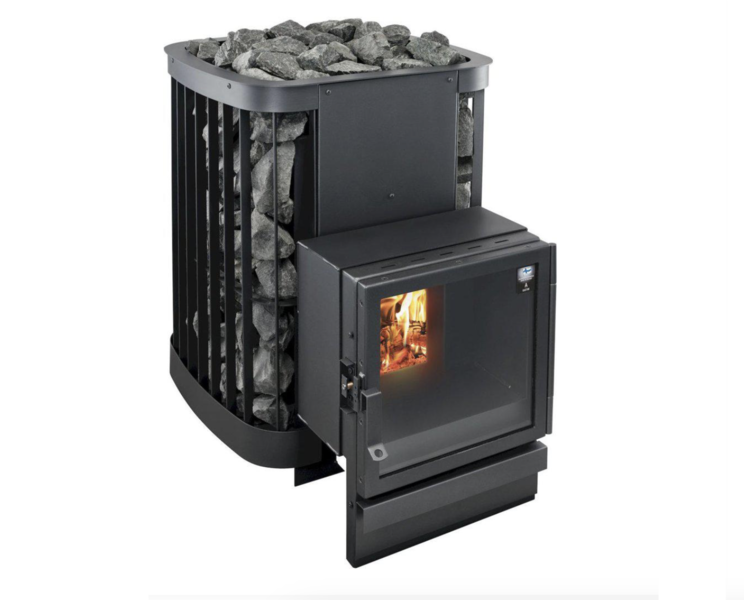

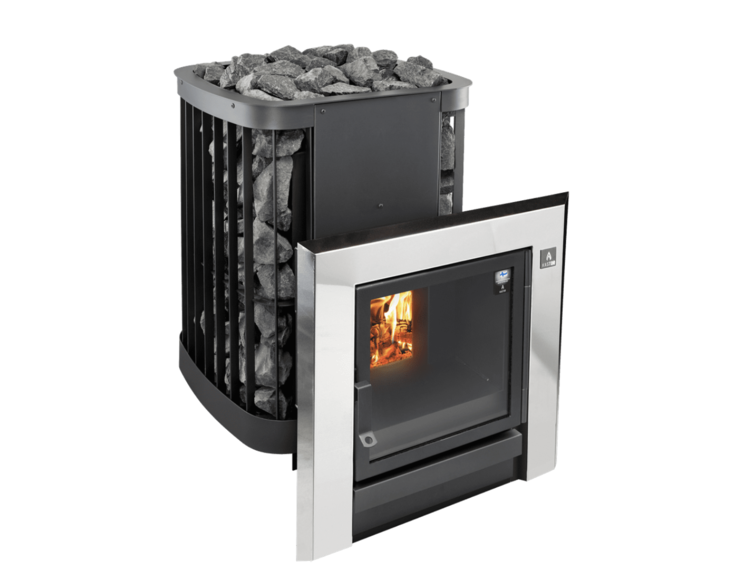

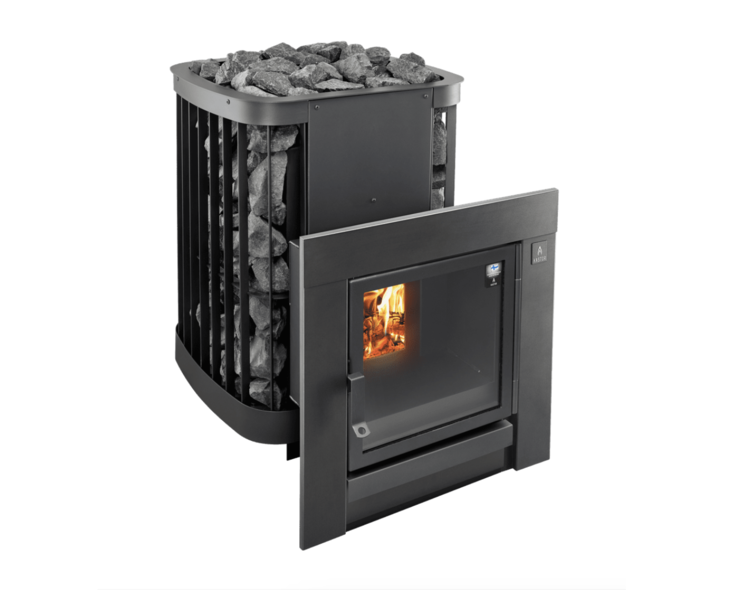

Kastor Saga 22 T fireplace heater is suitable for a sauna with a volume of 12-22 m³. A fireplace heater, or tunnel heater, is a combination of a wood heater and a fireplace, where the heater is located in a sauna and a fireplace on the other side of the wall. So you can first enjoy the steam on the sauna side and continue the atmosphere by the fireplace in the fireplace room, dressing room or living room. The fireplace located outside the sauna also heats the spaces outside the sauna and keeps the sauna clean when the debris coming from the firewood does not end up on the sauna floor. Kastor Saga 22 T is a CE-marked heater. The inside diameter of the flue is 115 mm. Saga 22 T does not include the front frame, a stone basket or a protective base. They are available as an accessories.The Saga heater takes wood-heated saunas to a new level, as the amount of 145-150 kilos of stone produces wave after wave soft and comfortable heat and steam. The forged steel bars of the heater are designed to last for years, and the stone nest extending from top to bottom makes the heater a spectacular eye-catcher for the sauna.

Technical specifications:

• Colour: dark grey
• Weight (kg): 109.0
• Amount of stones (kg): 130 – 140
• Effect (kW): 16 kW
• Measurements (WxHxD): 600 x 825 x 585
• Sauna size (m3):  12-22
• Safety distance, back: 50
• Safety distance, up: 1400
• Safety distance, side: 250
• Safety distance, front: 500

Saga T – Installation manual and user guide

Kastor protective base – Installation manual and user guide

Warranty
