Diamond Eco Plus

0.0

Metal tile is one of the most frequently applied solutions in residential, sacral and public buildings. The fully automated production process allows for cutting metal sheets to the required length and therefore the delivery of most unusual orders, accompanied by a reduction of waste. Blachotrapez offers metal tiles in over ten colors, coated with polyester, Pladur® Eco Protect ThyssenKrupp, aluminum and Colorcoat HP2000® Ultra. The lightweight of metal tiles is their particular advantage. 1 sq m of metal sheet weighs approx. 4,5 kg. Thanks to its lightness, a metal tile roof does not burden nor affect the structure of the entire building.

Tnot inc. VAT.

14,75 €19,80 €

Amount

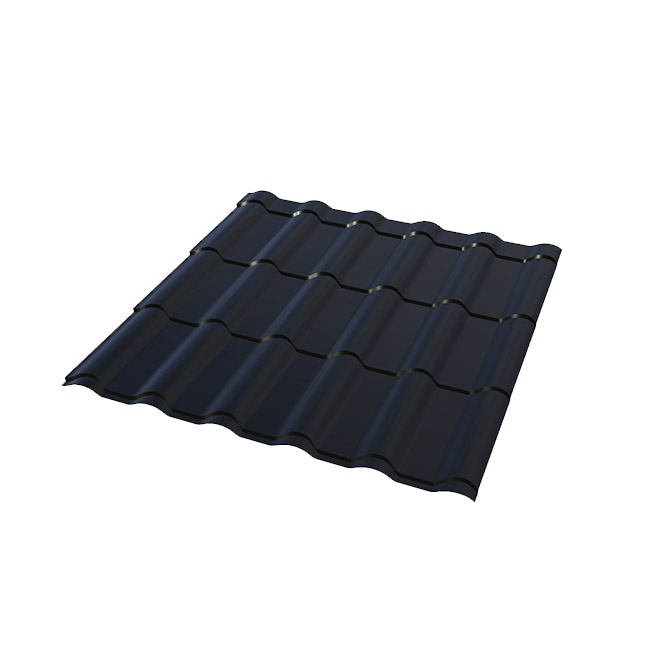

Tile Diamond Eco Plus a striking form. The height of the ribbing is 14mm. Like all roofing sheets produced by Blachotrapez, Diamond Eco Plus has a large width of the actual mating, which is 1120mm to 1200mm roofing sheet.

Technical details

Total width:	~1200 mm
Effective width:	1120 mm
Thickness of the finished product (steel):	0,5mm
Thickness of the finished product (aluminum):	0,6 mm
Height of forming:	14 mm
Depth of profile:	22 mm
Length of module:	350/400 mm
Minimum sheet length:	850/950 mm
Maximum sheet length:	5 750 mm
Pitch:	224 mm

Colour

Due to different monitor settings, colors may be different from reality, which is why the colors are approximate.
The colors of the samples are subject to production tolerances and may slightly differ from the material delivered to the construction site.
