Compressed clay board

Clay board is a quick wall solution that saves time on plaster installation. Clay boards are renowned for their strength and valuable properties of clay.

Clay building boards are ideal for interior construction work. They are suitable for covering interior walls, light partitions, wooden post and beam structures, and ceilings.

The clay board is suitable for both new construction projects and for renovating existing buildings.

Planning:

• The ideal dry construction solution for the interior of wooden and stone houses, as well as renovation projects.
• Offers creative freedom for planners and architects.
• Produced in automated factories with minimal primary energy and resource consumption.
• Provides high mechanical strength thanks to its jute fabric backing. -Ensures shorter assembly times and reduces the need for thick plaster layers.

Installation:

1. Compressed clay boards can be easily cut to the required dimensions using a handsaw or an electric cutter.

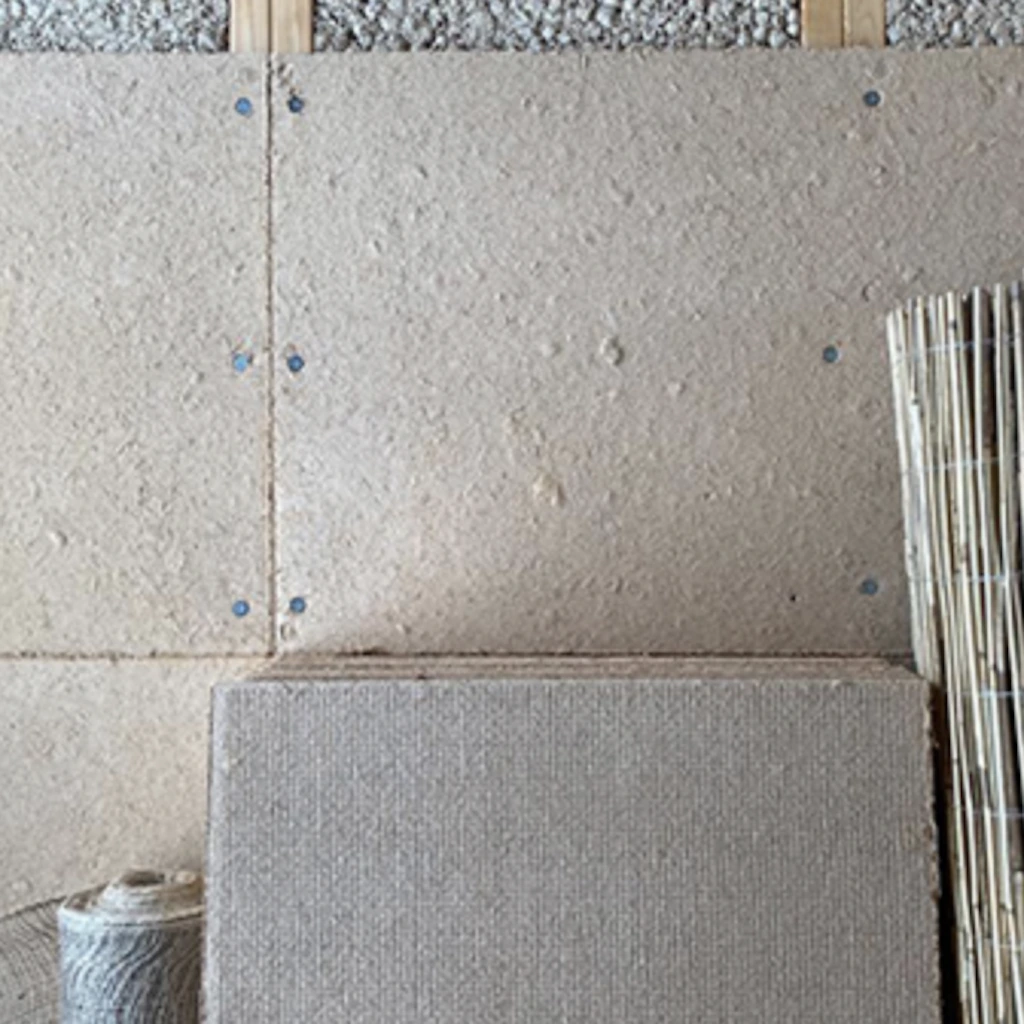

2. Place the panels onto the framework, ensuring there are no gaps between them.

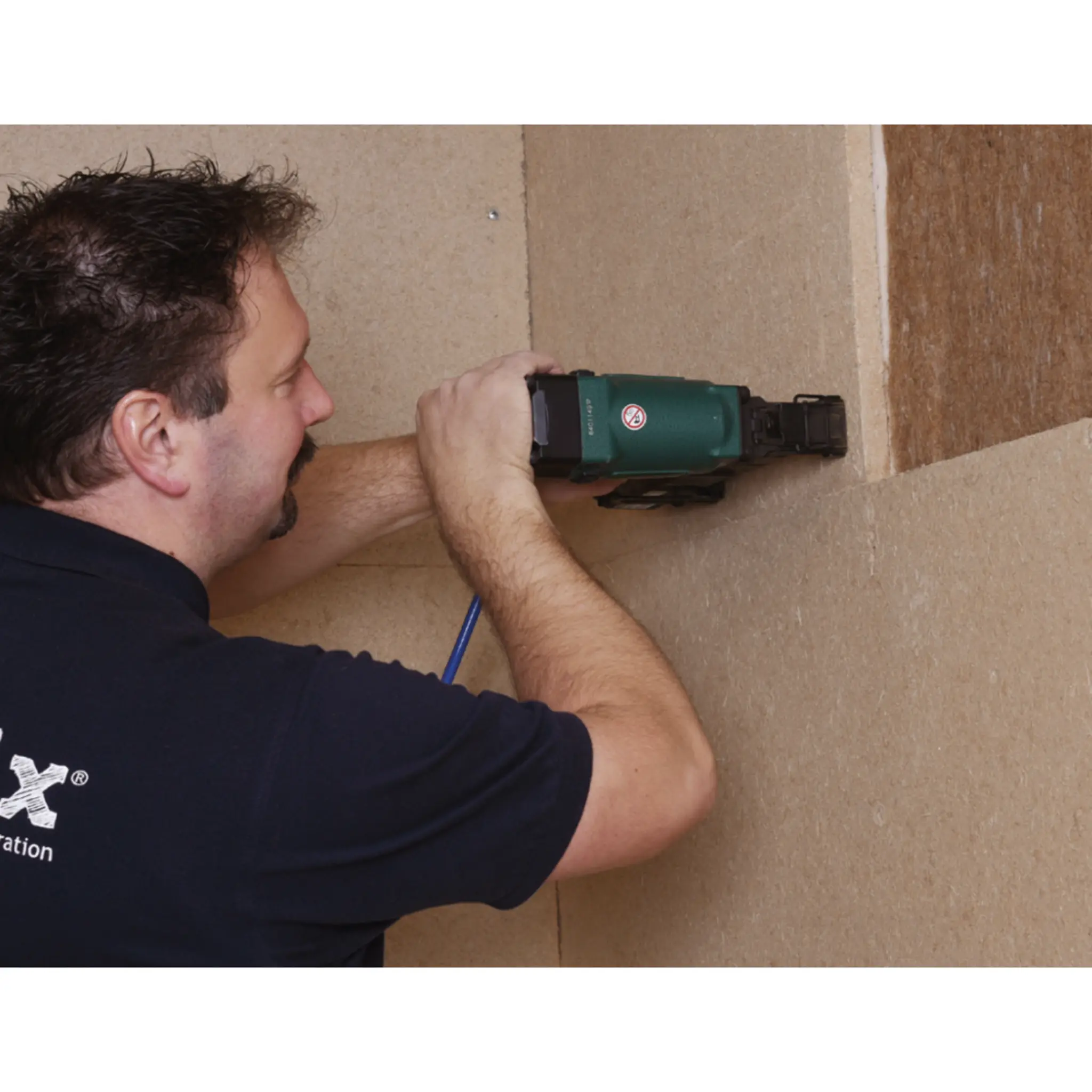

3. Use screws or specialized clamps to securely attach the panels to the framework. Screws should be spaced at least 30 cm apart.

Installation of Reinforcement Mesh:

Apply natural fiber mesh (e.g., jute or fiberglass mesh) to the panel joints to prevent cracking.
Plastering:

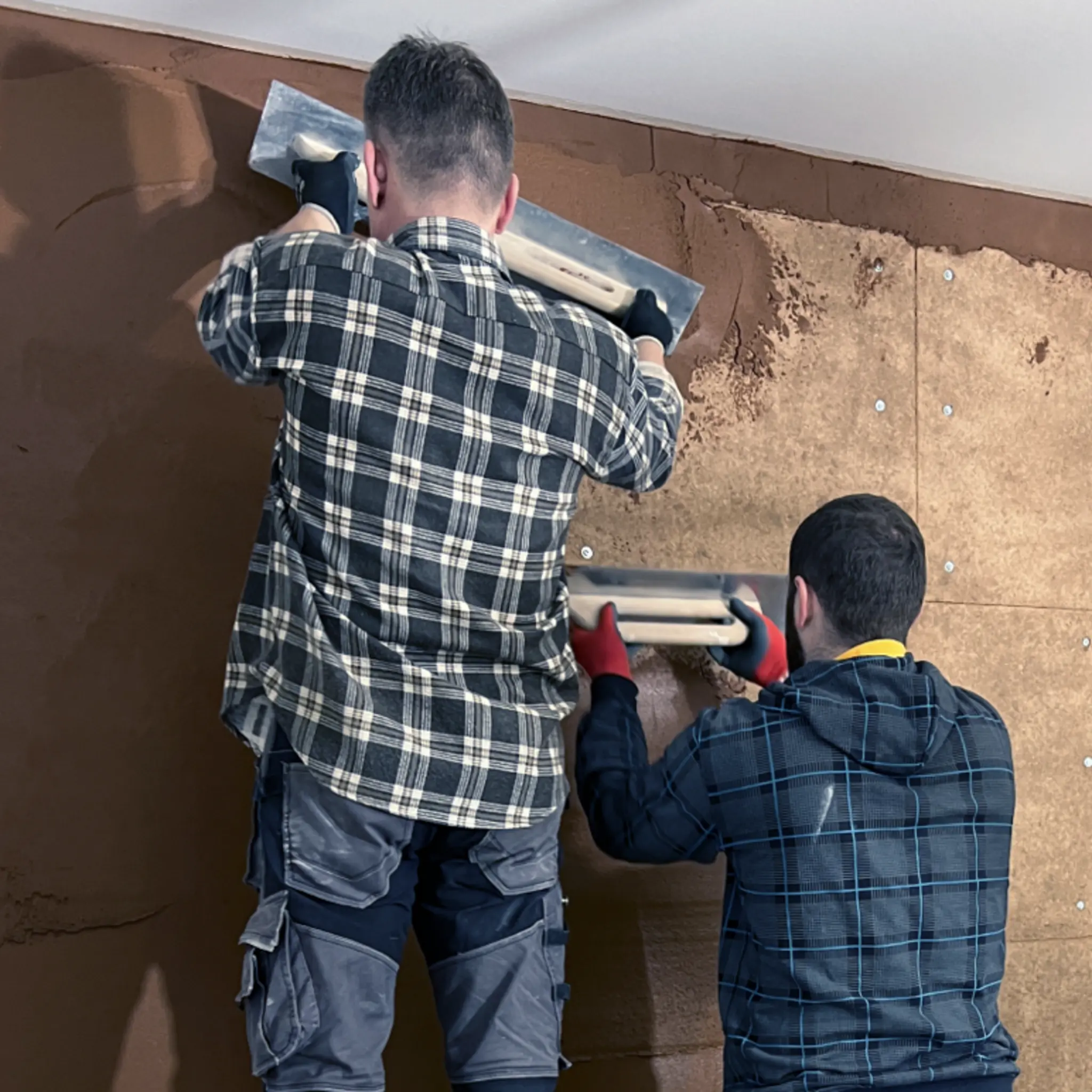

Compressed clay panels serve as an excellent base for clay plaster. Apply the plaster layer according to the desired finish.
Finishing:

After the plaster has dried, the surface can be coated with natural clay paint or left as a standalone plaster finish.

Dimensions:

16 mm 1250 x 625mm [0,781m²] – 23kg/m²
22 mm 1250 x 625mm [0,781m²] – 32kg/m²
