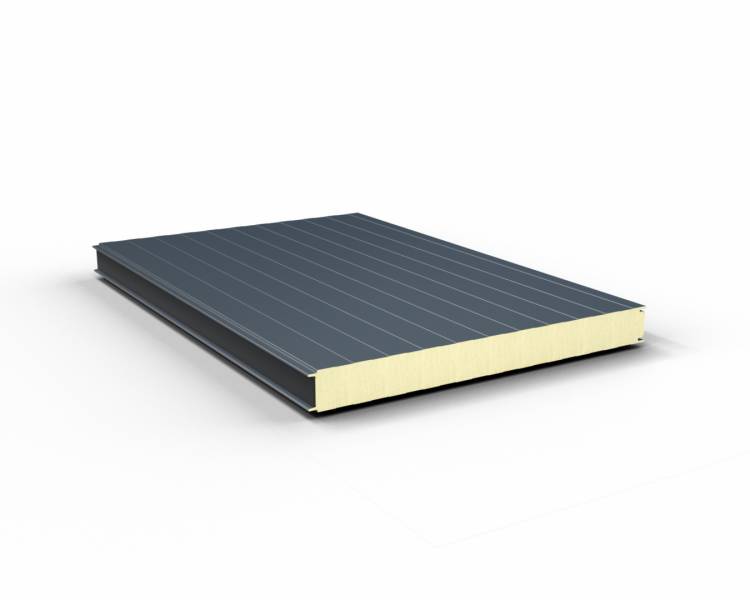

Arpanel PIR Sandwich Panel

0.0

Arpanel offers a wide range of innovative multilayer boards for walls, roofs, or refrigeration units that contain a polyisocyanurate (PIR) foam core. These plates consist of two steel sheets galvanized on both sides, coated with 25 µm organic polyester varnish and a construction and insulation core made of a rigid CFC-free self-extinguishing material.

Minimum order 150 m2.

This is the sample price for a 100mm panel. Please send your inquiry: order@factory.sale

23,90 €27,85 €

not inc. VAT.

Amount

Arpanel offers a wide range of innovative multi-layer wall, roof, and cooling boards filled with polyisocyanurate (PIR) foam. These plates consist of two steel sheets galvanized on both sides, coated with 25 µm organic polyester varnish and a construction and insulation core made of a rigid CFC-free self-extinguishing material. The coefficient of thermal conductivity is λ = 0.022 W / m * K. PIR foams are very resistant to high temperatures, decompose at temperatures above 325ºC and have carbonation of approx. fifty%. The carbonized layer protects against high-temperature penetration through the board, resulting in a more effective fire barrier. Different colors and profiles open up different possibilities for architects.

Minimum order 150 m2.

Profiled sheet metal gives the walls an aesthetic look.
Large profiling radius of the lock, ensuring the integrity of the sheet metal cover.
Double lock connecting the two panels, which ensures high fire resistance.
Profiled edges facilitate assembly and improve thermal insulation properties.
Rigid polyurethane foam core with very good thermal insulation properties.
Permanent polyurethane sealant that maintains high thermal insulation and is used during the manufacturing process.
The aluminum foil protects the polyisocyanurate foam from the steam penetrating the core.

Typical colors

RAL 1002

RAL 1021

RAL 3000

RAL 3011

RAL 5010

RAL 5012

RAL 6029

RAL 7016

RAL 7024

RAL 7040

RAL 8017

RAL 9007

1 Type of core: Stiff polyisocyanurate foam (PIR)

2 Apparent density of core [kg/m³]: 40 (+/-10%)

3 Thickness [mm]: 40, 60, 80, 100, 120.

4 Weight* [kg/m²]: 8, 10, 12, 14, 16.

5. Maximum length [m]: 16,50

6 Total width [mm]: 1020 / 1160 ( for thick.. ≥ 60 mm and profilation L, M i F).

7 System width [mm]: 1000 / 1140 ( for thick. ≥ 60 mm and profilation L, M i F)

8 External lining profiling: L – Linear, M – Mikro-profiling, F – Wavy, R – Grooving

9 Internal lining profiling: L – Linear, G – Smooth

10 Standard colours of external lining**: RAL 9002, RAL 9006, RAL 9007, RAL 9010

11 Standard colours of internal lining**: RAL 9002, RAL 9010

12 Cofficent U_d,S [W/m²K] PIR core: 0,58 0,37 0,28 0,22 0,18

13 Cofficent U_d,S [W/m²K] PIR MAX core: 0,58 0,38 0,28 0,20 0,17

14 Classification of fire resistance***: —EI 20, EI 20, EI 30

15 Fire classification: B-s1,d0

16 Fire spread: NRO

17 Certificates, approvals, seals of approval: DWU CE according to EN 14509, Hygienic Certificate, Certificate of Business Continuity EN 14509, Fire resistance classification.
